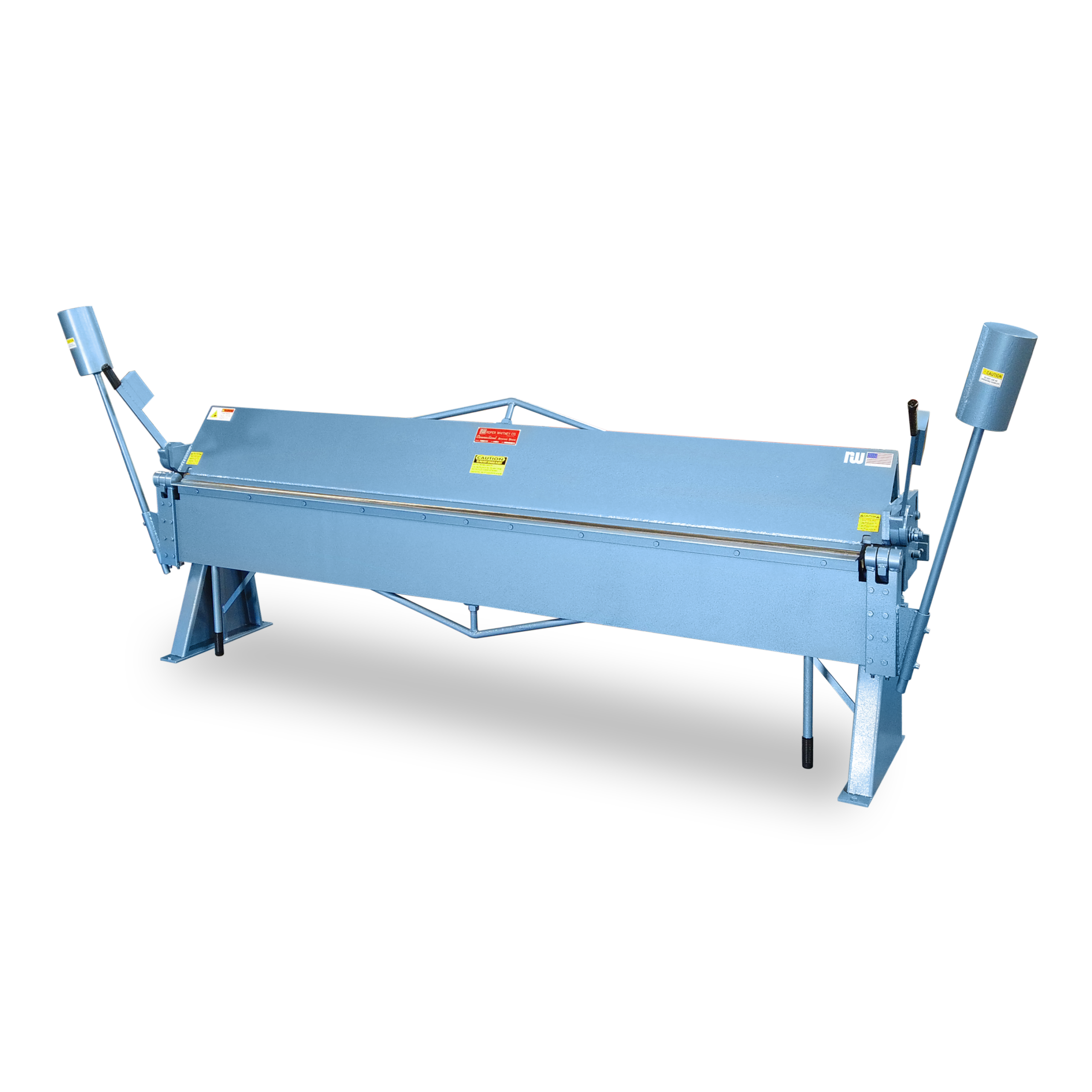

10-7-16 Straight Hand Brake
The 10-7-16 Connecticut Floor-Mounted Manual Bending Brake folds sheet metal up to 16 gauge mild steel at lengths up to 127″ (10’7″).
The 10-7-16 Connecticut Floor-Mounted Manual Bending Brake folds sheet metal up to 16 gauge mild steel at lengths up to 127″ (10’7″).
Connecticut bending brakes are precision machines designed for accurate bending within rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
| Weight | 2820 lbs |
|---|---|
| Dimensions | 168 × 53 × 60 in |
| Capacity mild steel, 1-inch flange, with bending angle removed | 20 gauge / 1.0mm |
| Maximum lift of beam | 1-5/8 in./ 57 mm |
| Front to rear adjustment | 1-3/8 in. / 35.0 mm |
