- ideal for installations, air conditioning, ducting, aircraft manufacturing
- for straight and curved patterns
- stationary cutting in a vice possible

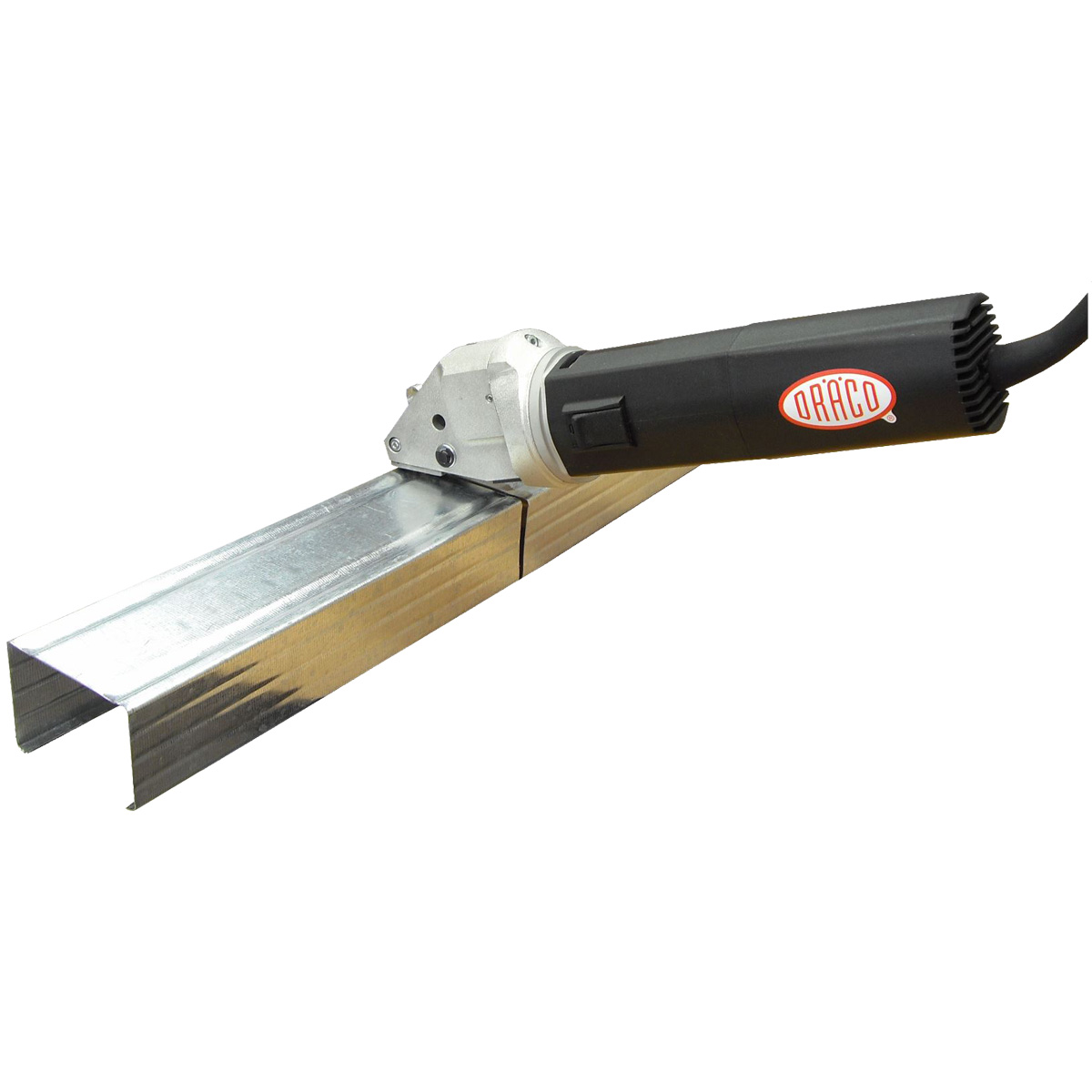

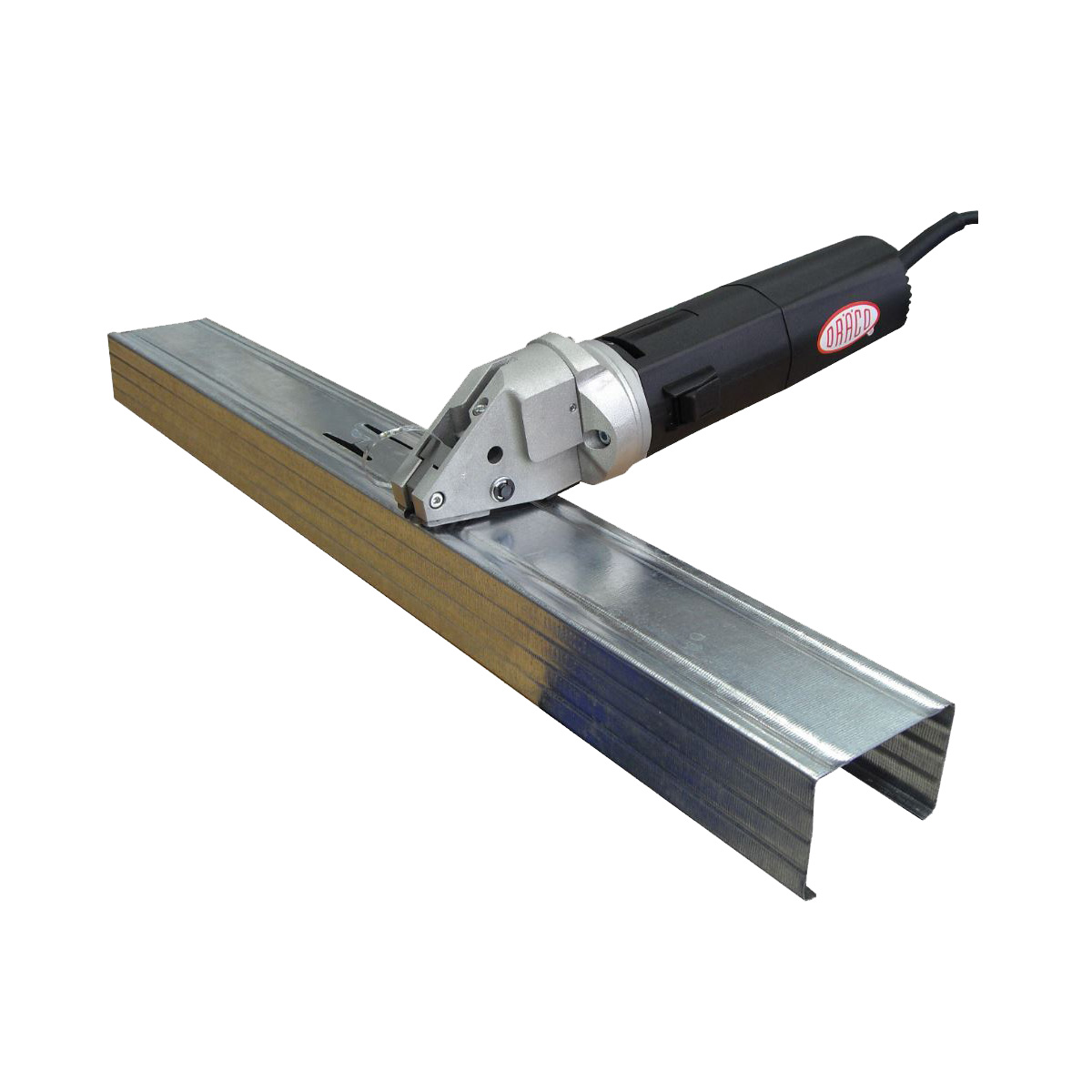

- ideal for U-,C- and L- profile cutting cable trays and steel studs
- an indispensable tool for any other applications
- optional adjustable guide S/01 for straight cuts without marking a line
- cuts without distortion or straightening of formed parts
- burr free cutting
- no finishing of the edges is required
- accurate cutting along a marked line
- single-side trimming is possible
- working speed up to 9 m/min
- clear view to scribed line or template
- long life tool
- easy, one hand, operation
- noise under limit regulations
- insulated and suppressed motor

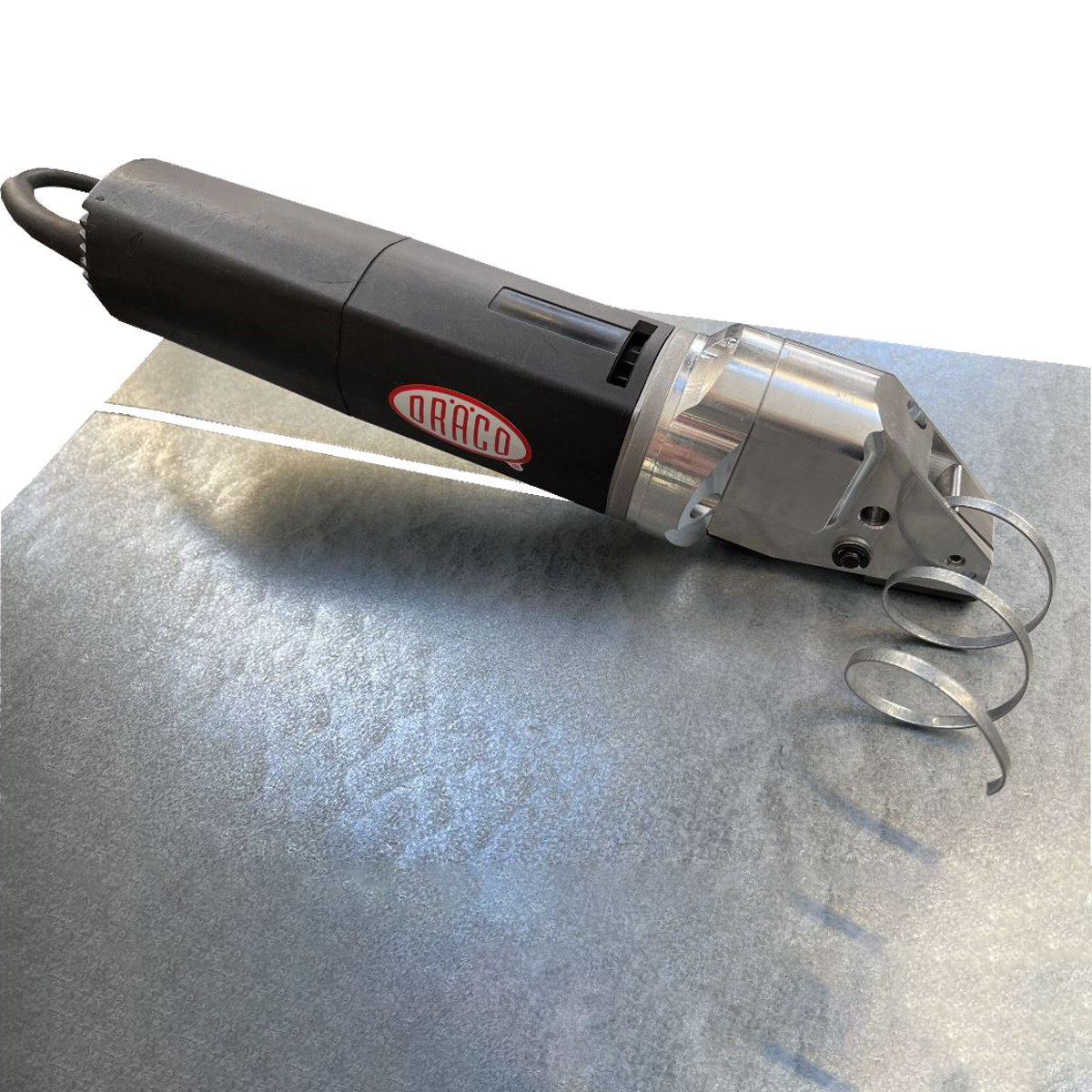

S1001N-1 Metal Slitter Shear
$680.00
The S1001N-1 Metal Slitter Shear is ideal for installations, air conditioning, ducting, and aircraft manufacturing. Perfect for cutting U-, C-, and L-profiles up to 18-gauge steel, it excels at cutting pre-formed parts, air ducts, sandwich boards, and making cold bridges, among many other applications. The knives and side knives can be reground, ensuring long-term usability. Lightweight, compact, and robust, these shears are suitable for both assembly and mass production, often used with linear guide systems.
Description
Characteristics:
Additional information
| Weight | 4.63 lbs |
|---|---|
| Dimensions | 16 × 3.5 × 8.5 in |
| Shear Dimensions |
12 1/4" x 3 1/4" x 2 1/4" |
| Shear Weight |
3.5 lbs (1.6 kg) |
| Working Speed |
30 fpm (9 m/min) |
| Minimum Radius |
4" (100 mm) |
| Max capacity Steel |
18 gauge (1.3 mm) |
| Max capacity Stainless |
20 gauge (1 mm) |
| Max capacity Aluminum |
0.080" (2 mm) |
