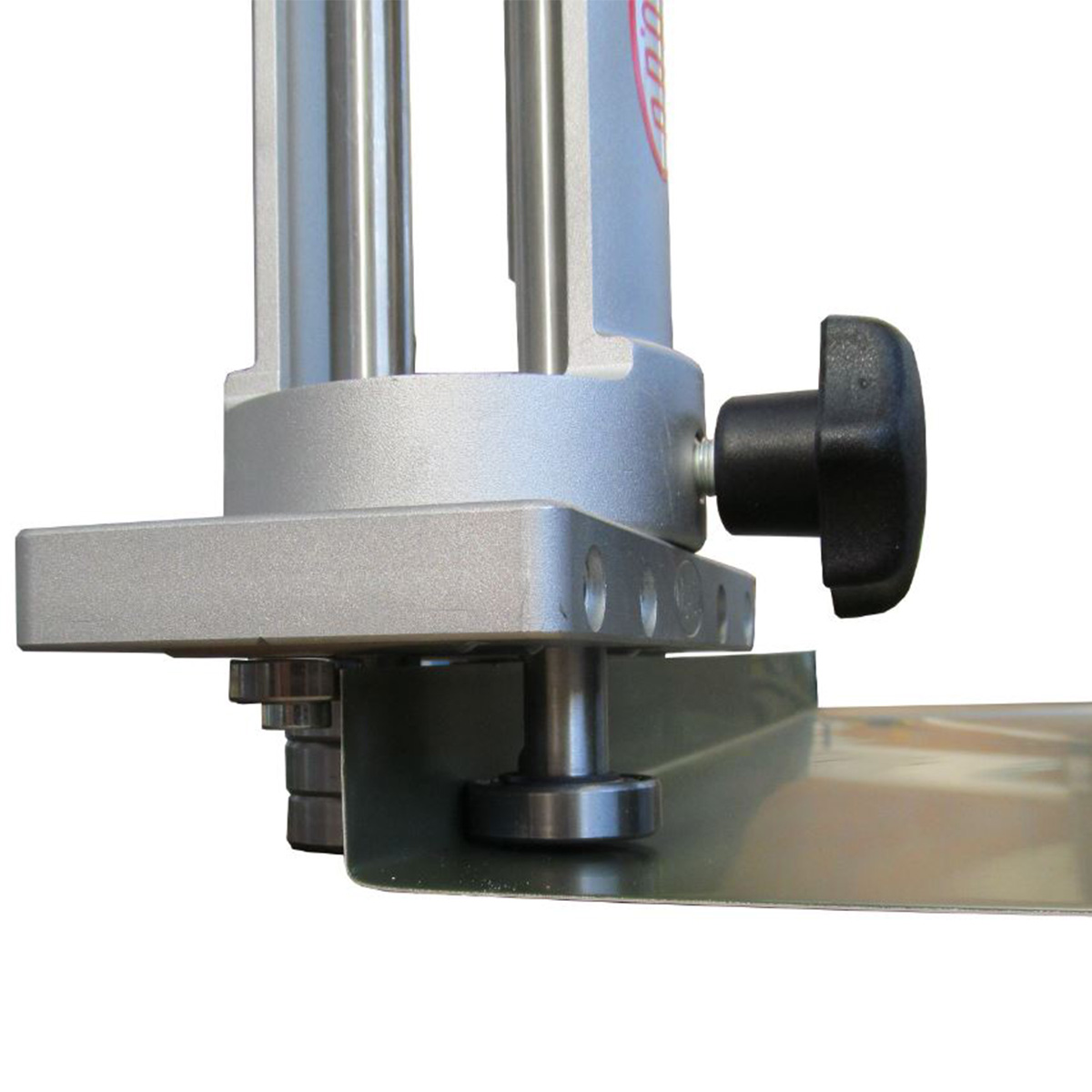

EcO-Bender 3/200 with O-Grip

Mobile Roll Forming tool for bending 0- 90 degrees, bending height 5-200 mm

Universal mobile bending tool to bend and form all kind of materials straight, concave or convex.

Add To Quote List
SKU: 91545 Category: Tag:
Description

With 4 guide rollers the EcO-Bender offers you a stabile guidance and an easy handling.

This bender forms many profiles. Bending up and down, making under and over cloak (male and female), standing seam and many more. Bending height is continuously adjustable (graduation in mm and inch). Inner and outer radii are possible, max. bending height depends on radius!

EcO-Bender3:
EcO=Economic with an O-formed Grip Handle. The O-Handle enables the full usage even when leverage is entirely extended to 200 mm (8 inch).
3= three optimal ergonomic grip positions



Characteristics:

  • EcO-Bender3 can be delivered with or without handle
  • EcO = economic with an O-formed Grip Handle
  • Universal mobile Bending Tool, to bend and form
  • All kind of materials, straight, concave or convex
  • Solves many technical bending problems, as up-stands and counter forms without any scratch mark
  • Handle offers a convenient good grip, even when the entire length is extended to 200 mm, (8 inch)
  • Eyelet to hang up the tool
  • Graduation in inch and millimeter
https://www.youtube.com/watchv=gHwX87ABfkc&t=191s

Benefits:

  • Flexible manufacturing process
  • Easy customization and freedom when it comes to giving shape to a profiled section even at the jobsite
  • Shorter travelling time
  • The required tools are small and affordable
  • Shorter production times imply prompt delivery and a faster completion of the job
  • Optimal leverage making work even more easy
  • economic price

EcO Bender Comparison Chart

DR?CO EcO-Benders EcO-Bender 3/200 With O-Grip EcO-Bender 4/200 With O-Grip
MAX. Bend CAPACITY PART NO. 91545S1 91545 91545100S1 91545100
Steel 22 GA (0.7 mm) ?? 22 GA (0.7 mm) ??
Stainless Steel 26 GA (0.5 mm) ?? 26 GA (0.5 mm) ??
Aluminum 0.040?? (1 mm) ?? 0.040?? (1 mm) ??
Bend Height 5-200 mm ?? 5-200 mm ??
Bending Degrees 0-90 ?? 0-100 ??
Weight 3.3 lbs. 4 lbs. 3.3 lbs. 4 lbs.
Additional information
Weight 4.26 lbs
Dimensions 14 × 6 × 8.5 in
Type

Manual
Max capacity Steel

22 gauge (0.7 mm)
Max capacity Stainless

26 gauge (0.5 mm)
Max capacity Aluminum

0.040" (1 mm)
