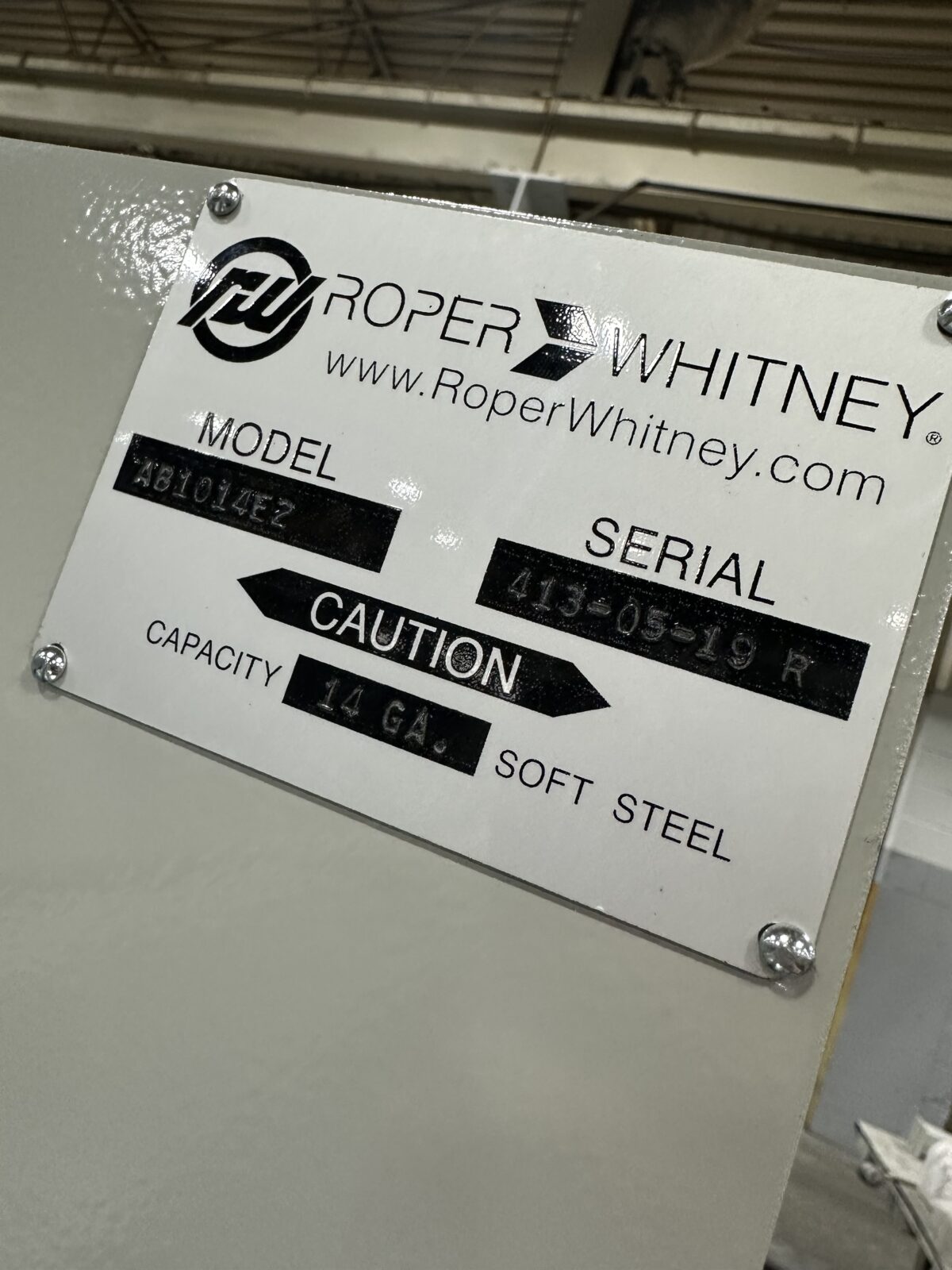

REFURBISHED AB1014 SN: 413-05-19R
Refurbished Autobrake from 2019
10′ and 14 gauge max bend capacity
Description
| RW AUTOBRAKE SERIES | AB1014 |
| Bending Capacity (Mild Steel) | 14ga / 2,0mm |
| Bending Capacity (Stainless) | 16ga / 1,5mm |
| Bending Length | 122 in / 3100mm |
| Bending Bars | .787″ (20mm) bending bar x 122″ (3100mm) |
| .394″ (10mm) bending bar x 122″ (3100mm) | |
| .275” (7mm) bending bar x 122″ (3100mm) | |
| Back gauge Depth (Standard) | 40 in / 1000 mm |
| Clamping Beam Opening Height | 7.3 in / 185mm |
| Clamping Beam Tooling | 30 Degrees |
| Folding Beam Adjustment | 2 in / 50mm |
| Crowning of the Folding Beam | 3-Point 0”-0.030” Adjustment |
| Working Height | 34 in / 864mm |
| Machine Weight | 9,132 lbs. |
| Shipping Weight | 9,612 lbs. |
| Back Gauge Motor | 3/4 hp |
| Clamping Beam Motor | 2 hp |
| Bending Beam Motor | 2 hp |
| Original Manufactured date | April 2019 |
| Speeds | AB1014 |
| Clamping Beam Speed | 2.5” per second |
| Folding Beam Speed | 70 degrees per second |
| Back gauge Speed (0.375” to 40”) | 2.5 seconds |
Machines are standard with 230 Volt 3 Phase
* phase converter is required when connecting to single phase power.
Warranty
Each machine is thoroughly tested by our engineers before shipping to your shop floor and all re-manufactured machines carry a 90 day warranty. Our team will ensure that your machine continues to deliver the quality and efficiency you require to maintain your competitive advantage.
Terms:
35% Down payment 65% Due at shipment
F.O.B. Rockford, IL 61103
