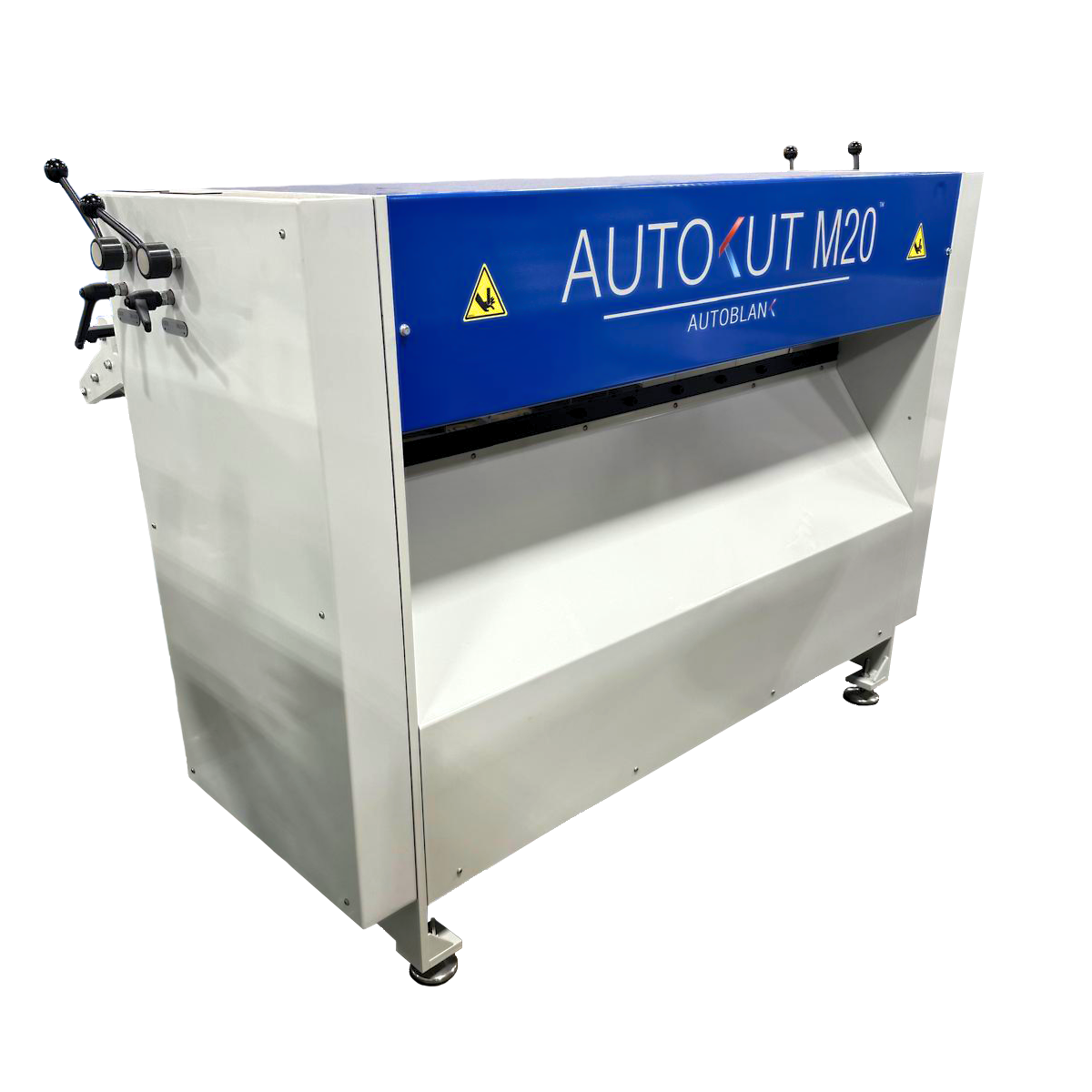

AutoBlank M20
The AutoKut M20 Blanker’s compact design takes up little space, ideal for smaller sheet metal shops who want to produce their own flat sheets. The M20 Blanker’s reliable feed system is equipped with ball-bearing side guides and a combination of adiprene-coated and steel rollers, ensuring smooth plate handling and reaching a feed rate of 65 feet per minute. The AutoBlank M20 blanks up to 20 gauge steel and accommodates coil widths of up to 49.25 inches. It includes three straightening rollers and a programmable touchscreen Schneider control system.
Description
| AutoBlank M20 Specifications | |
| Maximum Blanking Capacity Mild Steel | 20 gauge |
| Blanking Capacity Stainless Steel | 24 gauge |
| Blanking Capacity Aluminum | .050” |
| Max Coil Width | 49.25” |
| Min Coil Width | 8” |
| Coil Width Adjustment | Manual |
| Thickness Adjustment | Manual |
| Straightener Rollers | 3 (1 over 2) |
| Straightener Rollers Adjustment | Manual |
| Max Speed | 65 fpm |
| Guillotine | 1.4HP – electric |
| Drive | 1.4HP – electric |
| Coil Management Software | No |
| Film Applicator | Optional |
| Control | 7” Touchscreen |
| Voltage | 230VAC 3 phase – 16 Amps |
| Dimensions | 47” x 65.5” x 46” |
| Weight | 2,645 lbs |
Additional information
| Weight | 4410 lbs |
|---|---|
| Dimensions | 72 × 66 × 46 in |
