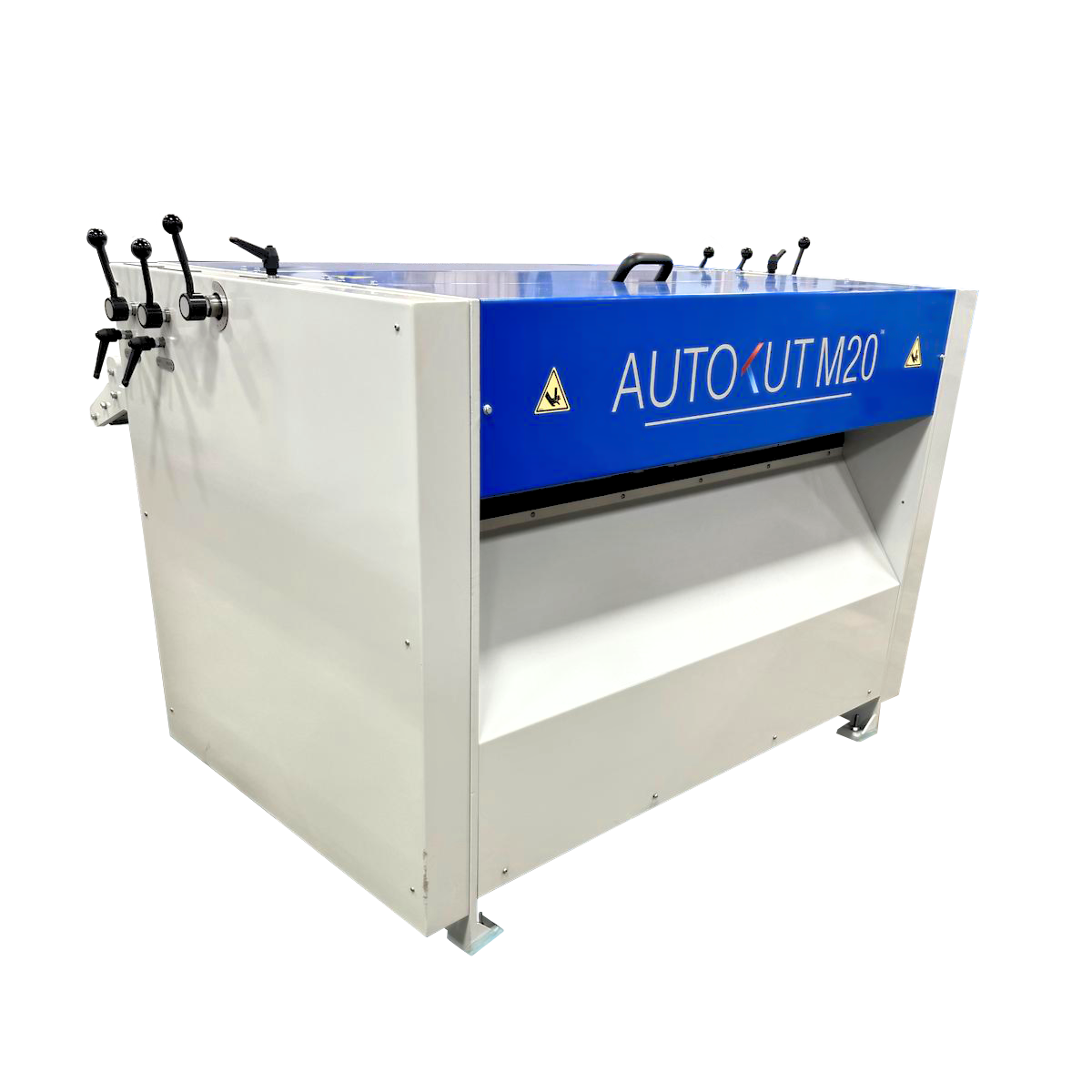

AutoKut M20
The AutoKut M20’s compact design takes up little space, ideal for smaller sheet metal shops. Its reliable feed system is equipped with ball-bearing side guides and a combination of adiprene-coated and steel rollers, ensuring smooth plate handling and reaching a feed rate of 65 feet per minute. The AutoKut M20 blanks and slits up to 20 gauge steel and accommodates coil widths of up to 49.25 inches. It includes a touchscreen Schneider control system, three straightening rollers, and slitting rollers that come standard with 5 pairs of knives.
Description
| AutoKut M20 Specifications | |
| Maximum Slitting Capacity Mild Steel | 20 gauge |
| Slitting Capacity Stainless Steel | 24 gauge |
| Slitting Capacity Aluminum | .050” |
| Maximum Blanking Capacity Mild Steel | 20 gauge |
| Blanking Capacity Stainless Steel | 24 gauge |
| Blanking Capacity Aluminum | .050” |
| Max Coil Width | 49.25” |
| Min Coil Width | 8” |
| Minimum Edge Trim | 1/4” |
| Minimum Slit Width | 2 3/8” |
| Coil Width Adjustment | Manual |
| Thickness Adjustment | Manual |
| Straightener Rollers | 3 (1 over 2) |
| Straightener Rollers Adjustment | Manual |
| Knives (standard) | 5 |
| Knives (max) | 5 |
| Knives Overlap Adjustment | Manual |
| Knives Distance Adjustment | Manual |
| Max Speed | 65 fpm |
| Guillotine | 1.4HP – electric |
| Drive | 1.4HP – electric |
| Film Applicator | Optional |
| Control | 7” Touchscreen |
| Voltage | 230VAC 3 phase – 16 Amps |
| Dimensions | 59” x 65.5” x 46” |
| Weight | 3,086 lbs |
Additional information
| Weight | 3086 lbs |
|---|---|
| Dimensions | 59 × 65.5 × 46 in |
