| AutoKut 100 | ||
| Maximum Material Width | 49.25” / 1250 mm | |
| Minimum Material Width | 8” / 200 mm | |
| Maximum Slitting Capacity Mild Steel | 20 gauge / 1.0mm | |
| Slitting Capacity Stainless Steel | 24 gauge / 0.6mm | |
| Slitting Capacity Aluminum | 0.050” / 1.25mm | |
| Maximum Blanking Capacity Mild Steel | 18 gauge / 1.25 mm | |
| Blanking Capacity Stainless Steel | 22 gauge / 0.8 mm | |
| Blanking Capacity Aluminum | 0.060” / 1.5 mm | |
| Number of Straightening Rolls | 3 (1 over 2) | |
| Minimum Slit Width | 2 3/8” / 60 mm | |
| Minimum Edge Trim | ¼” / 6.4 mm | |
| Number of Slitting Knives | 5 | |
| Slitting Speed Variable | 85 FPM / 25 MPM | |
| Drive Motor | 3 hp / 2.2 kw | |
| Guillotine Motor | 2 hp / 1.5 kw | |
| Machine Weight | 4,055 lbs / 1850 kg | |
| Machine Dimensions L x W x H | 72 x 65.5 x 46” | |

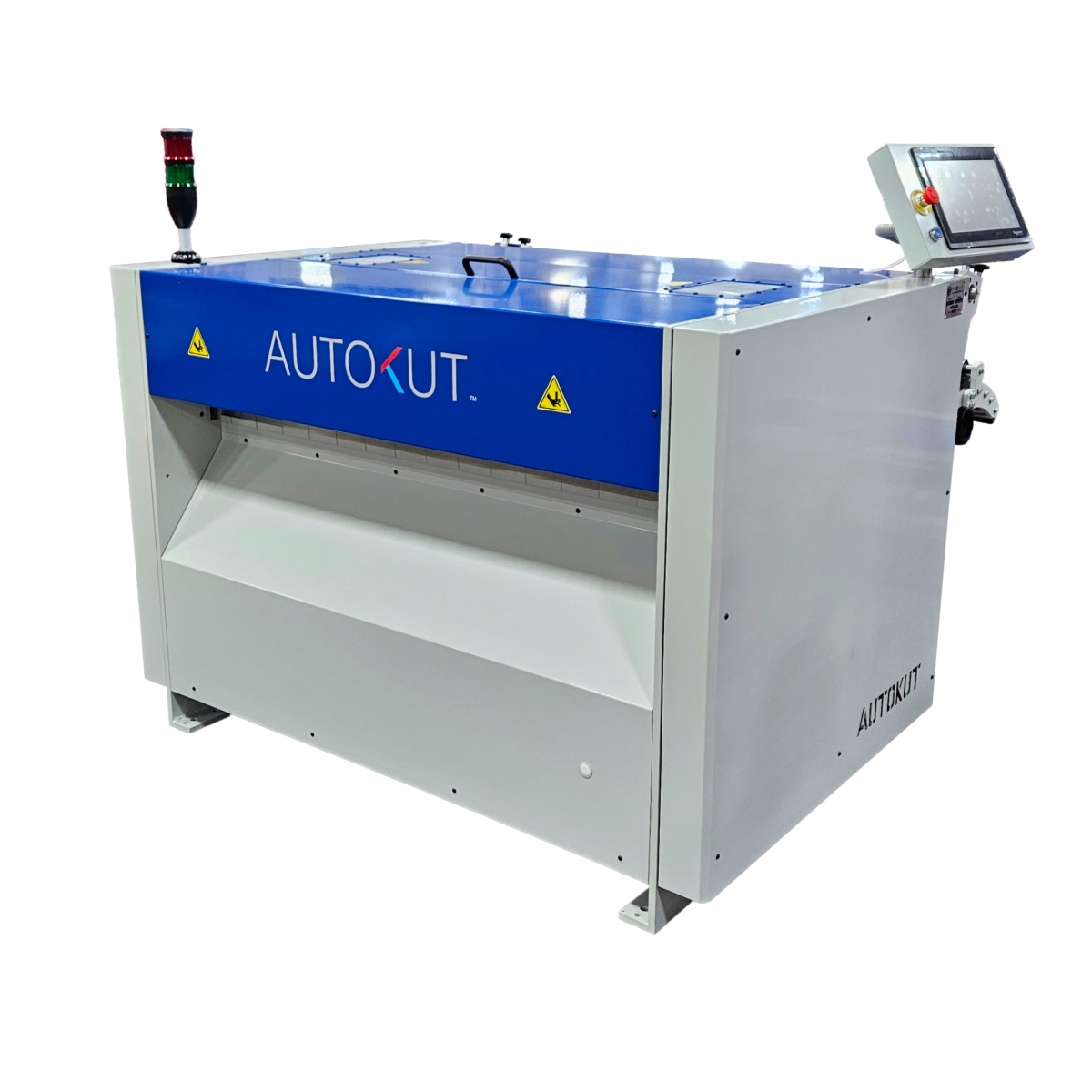

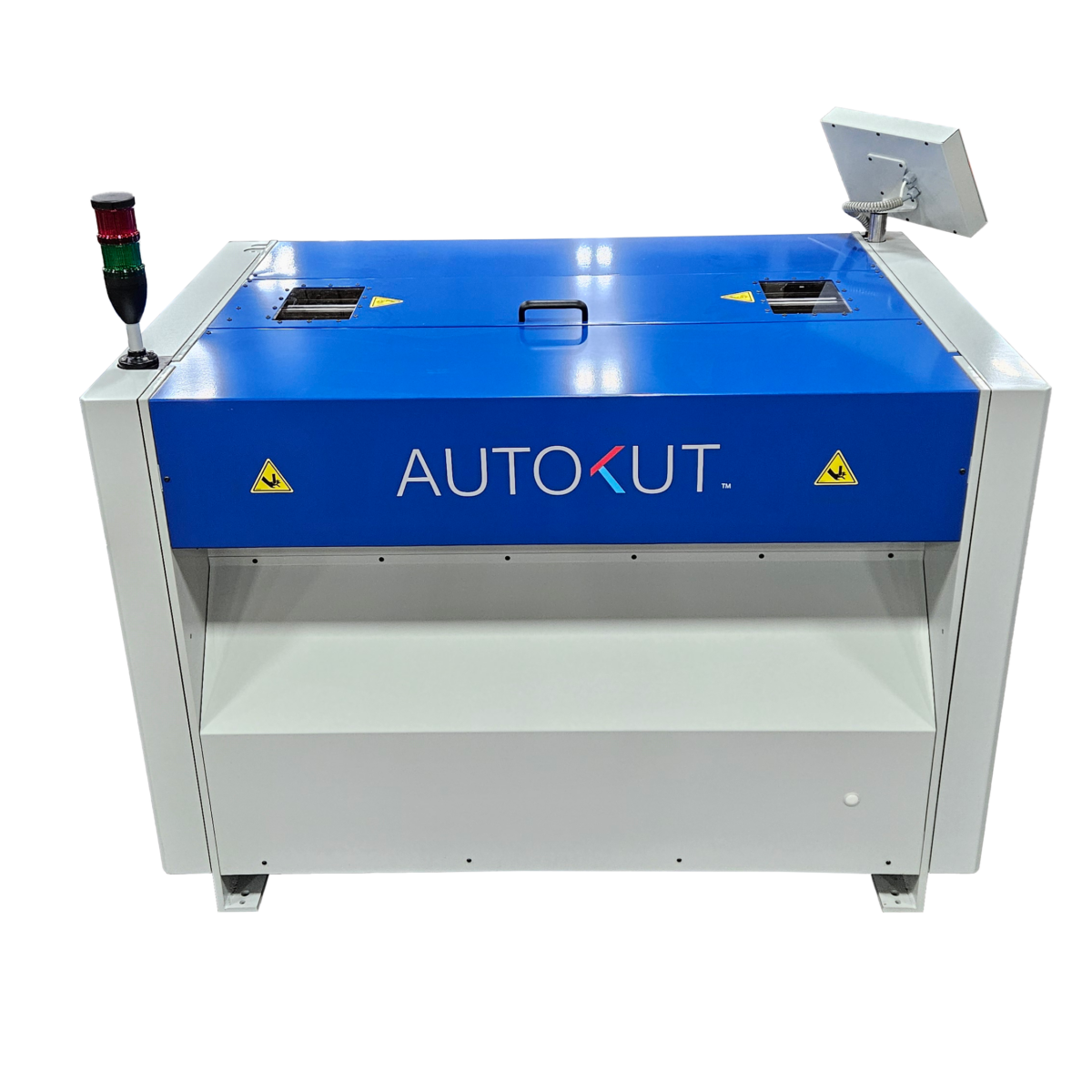

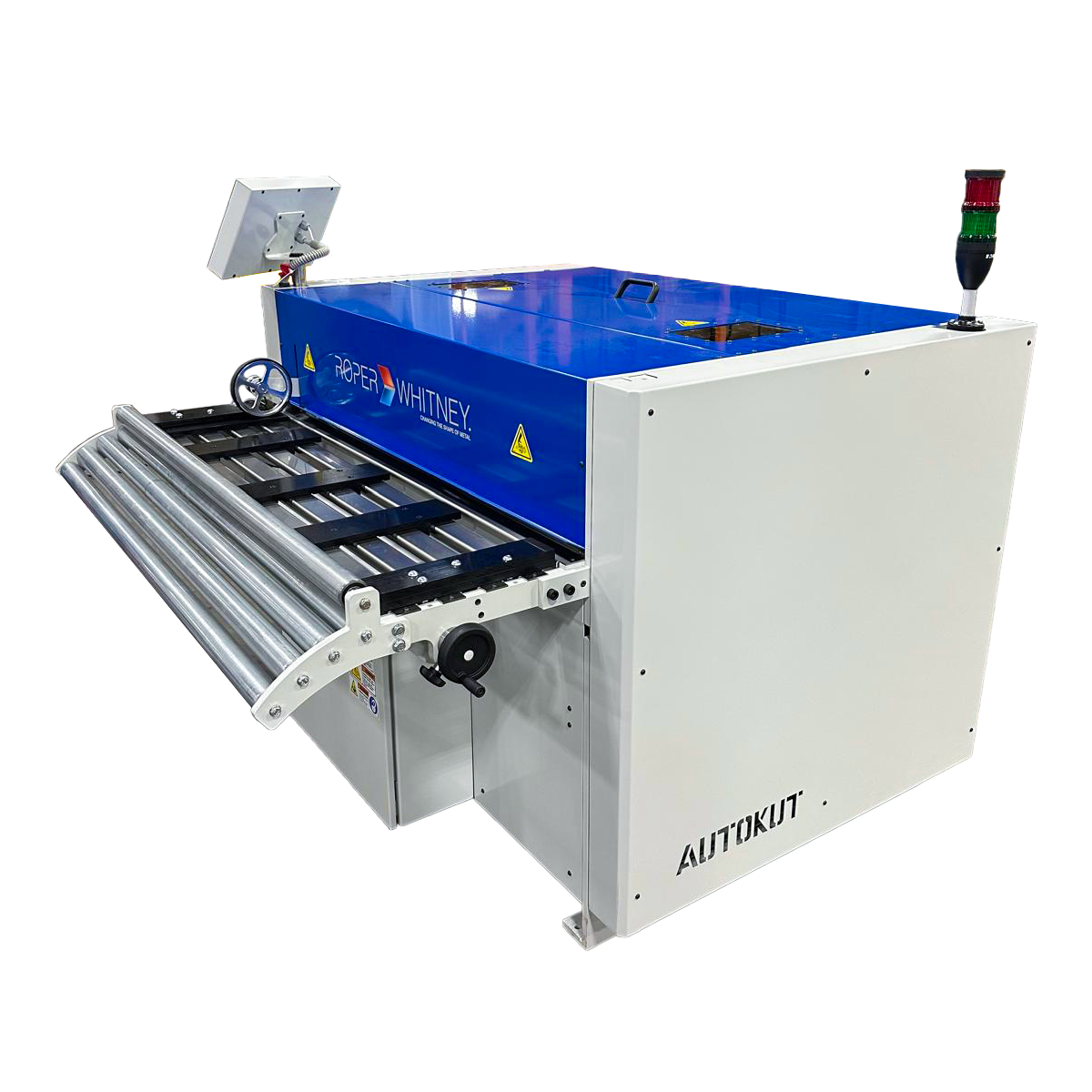

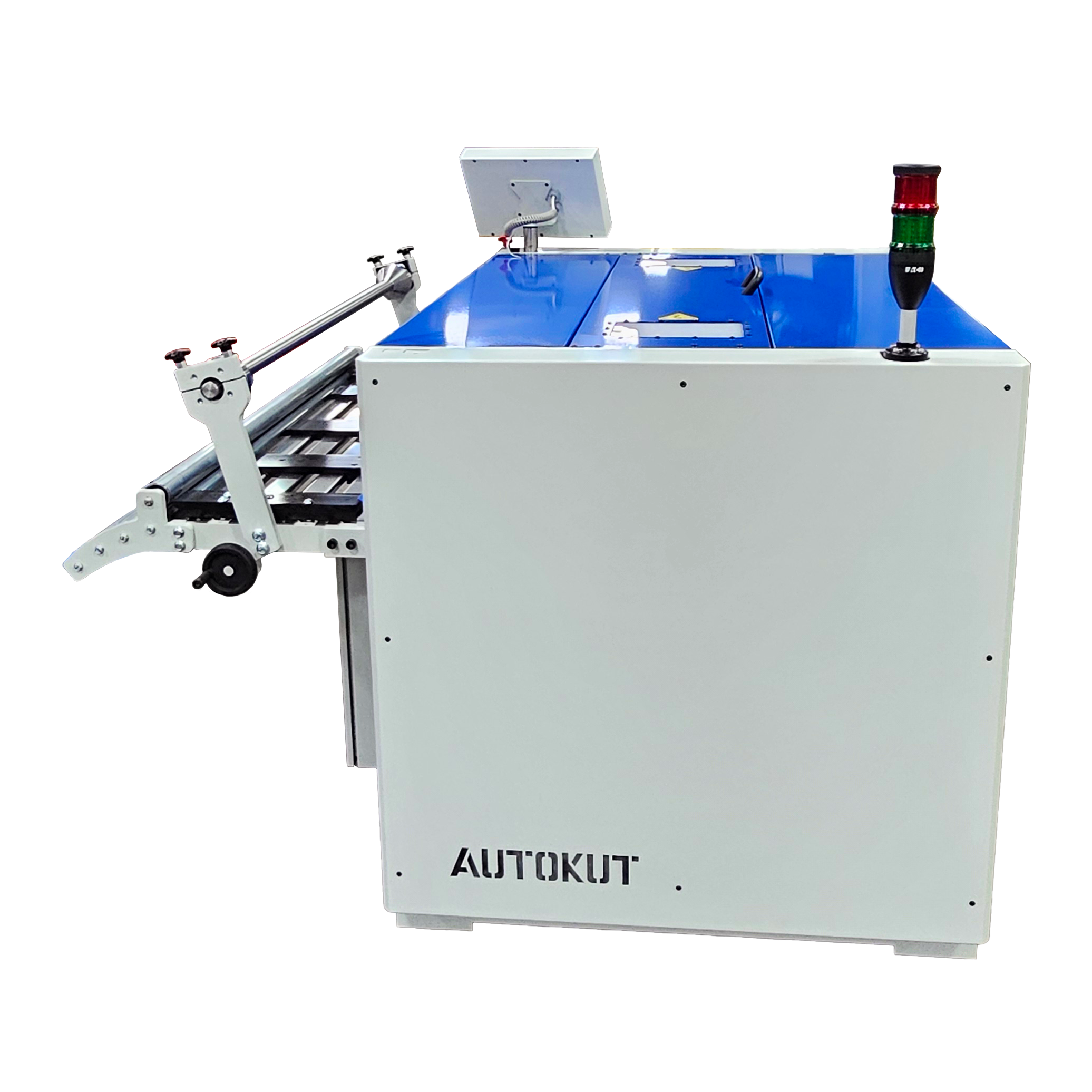

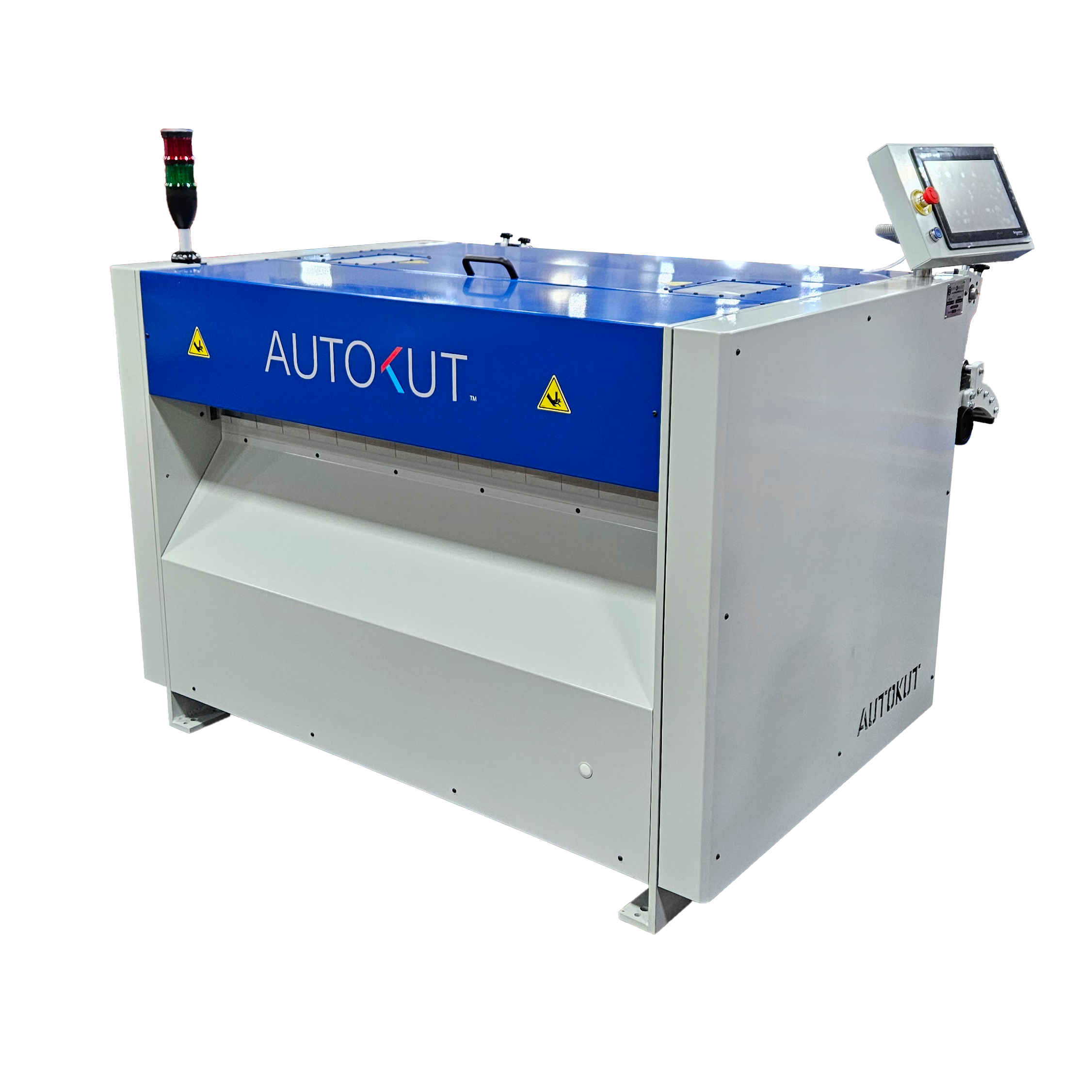

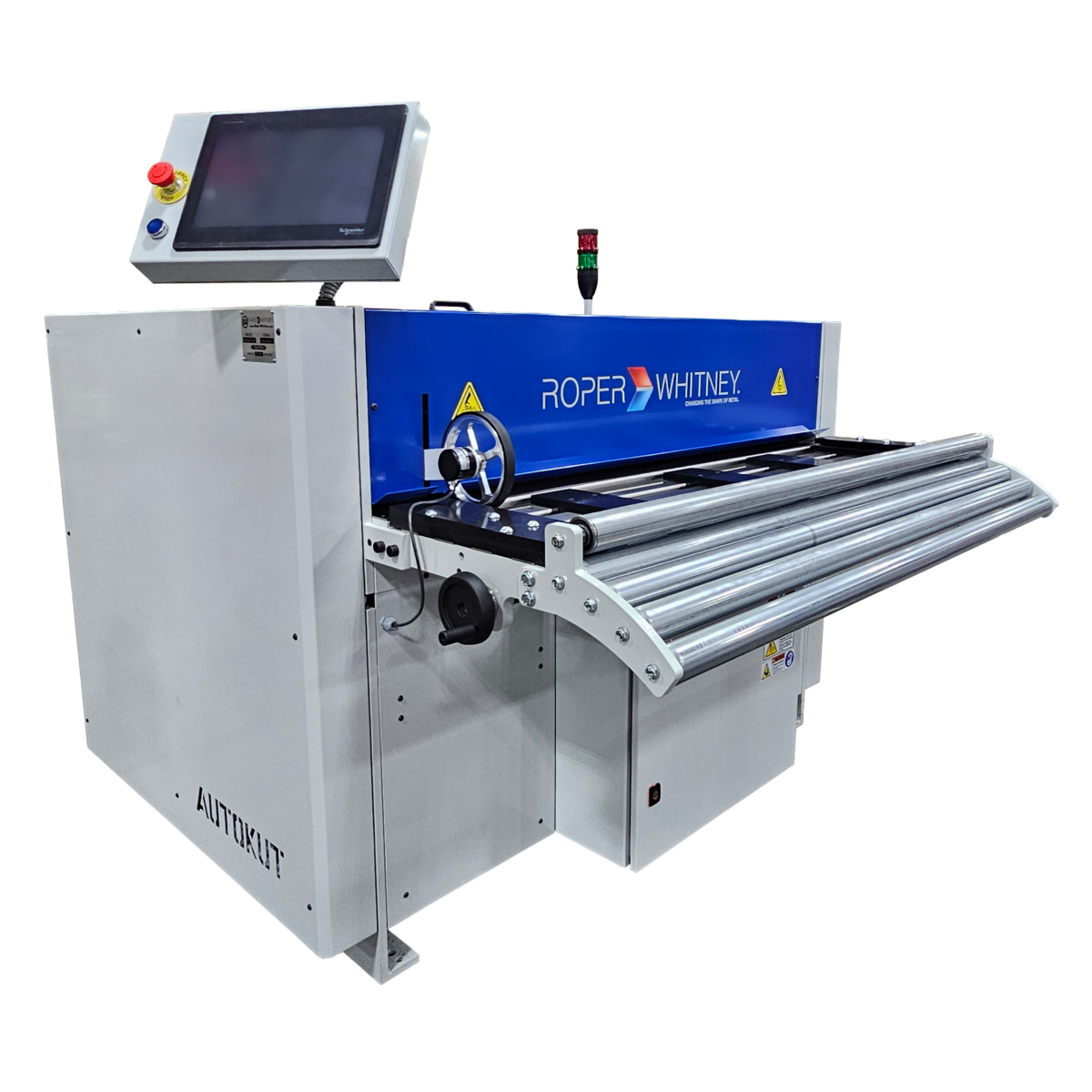

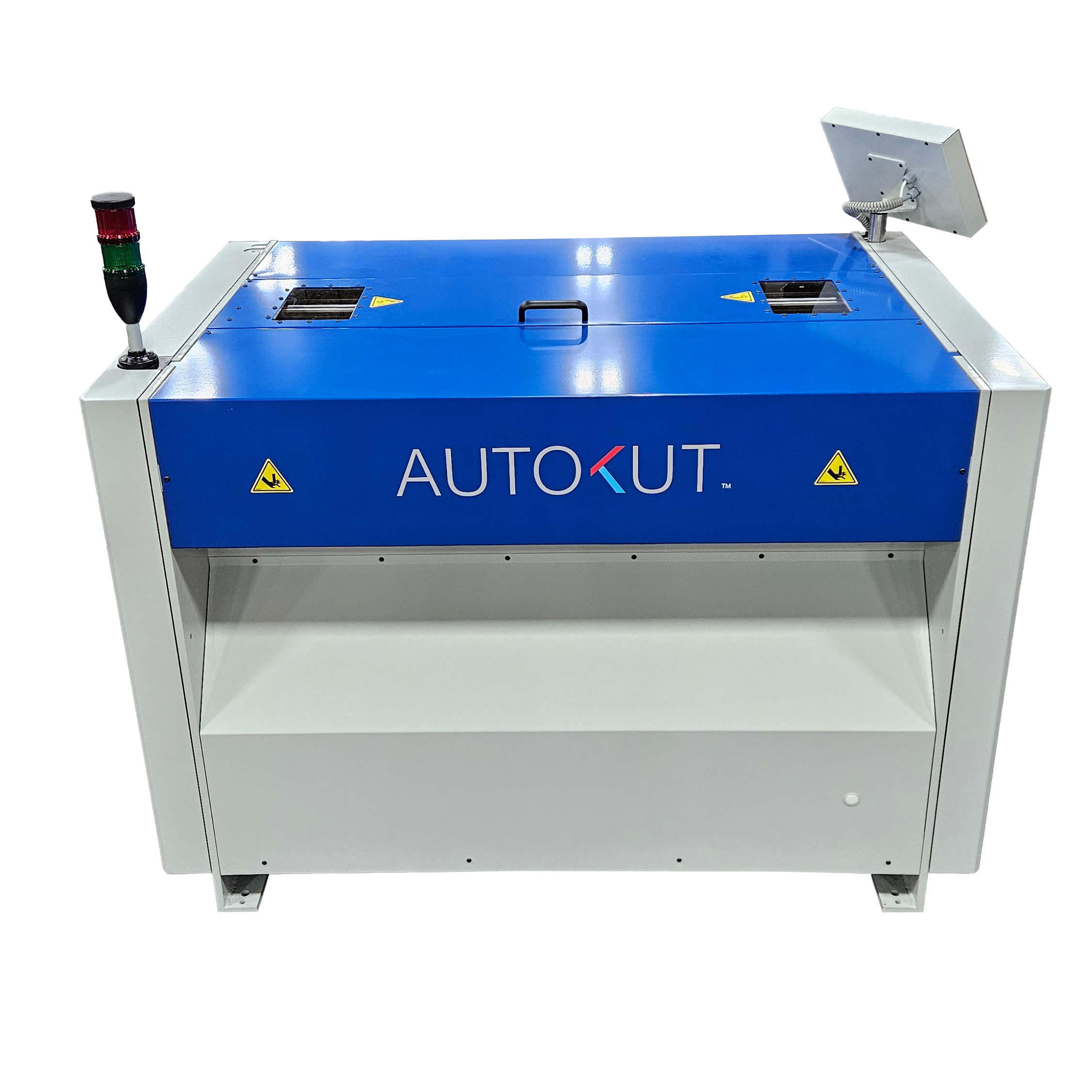

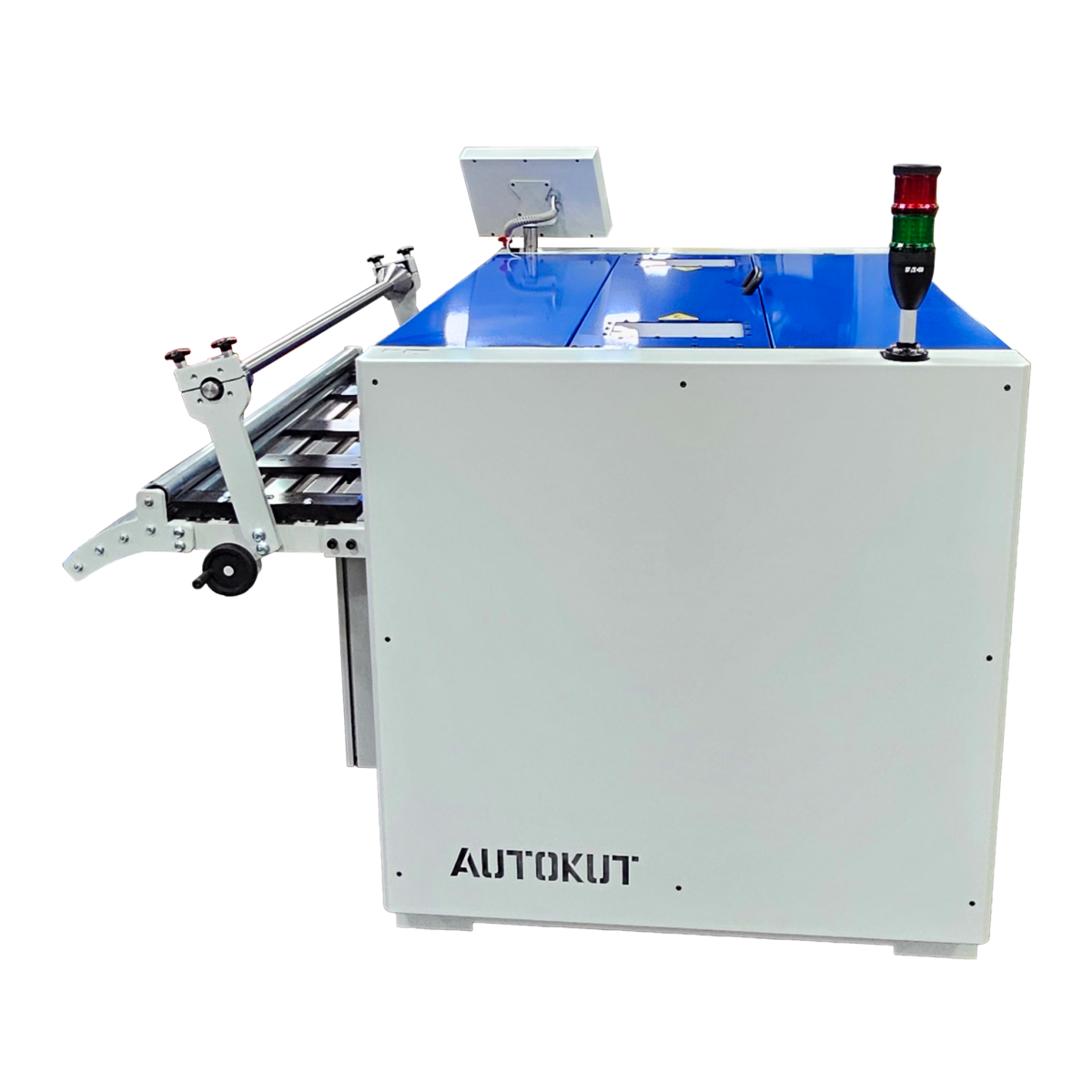

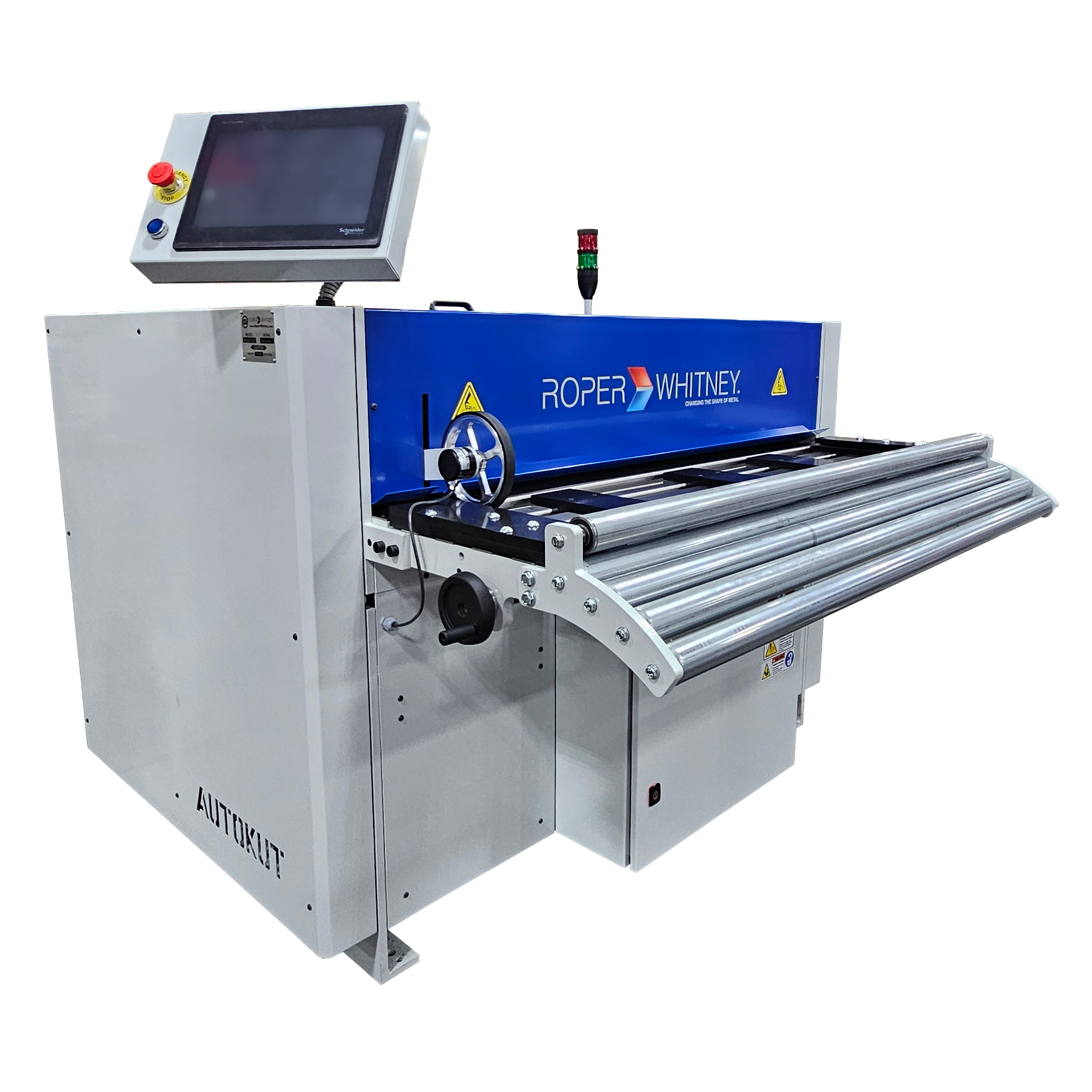

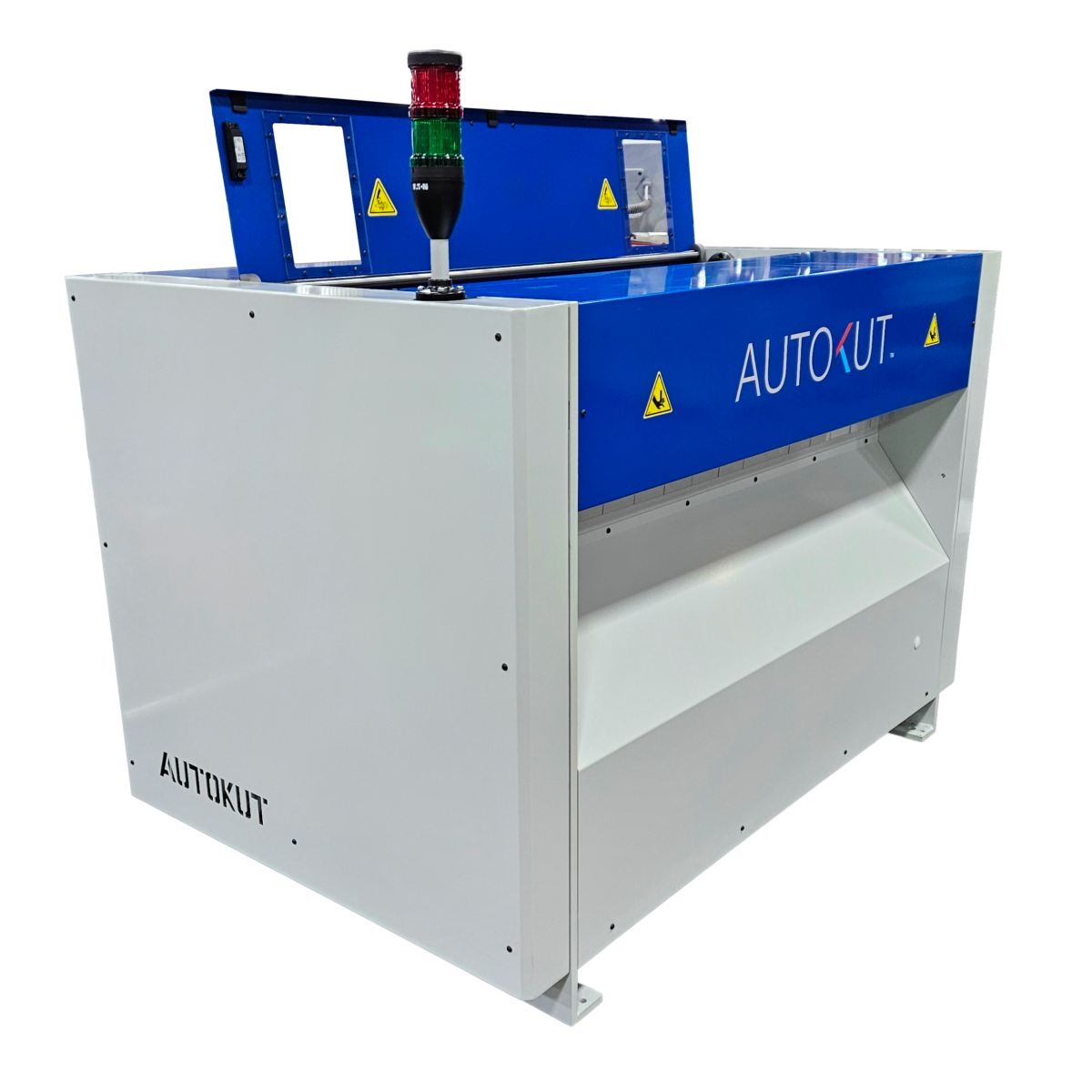

AutoKut 100

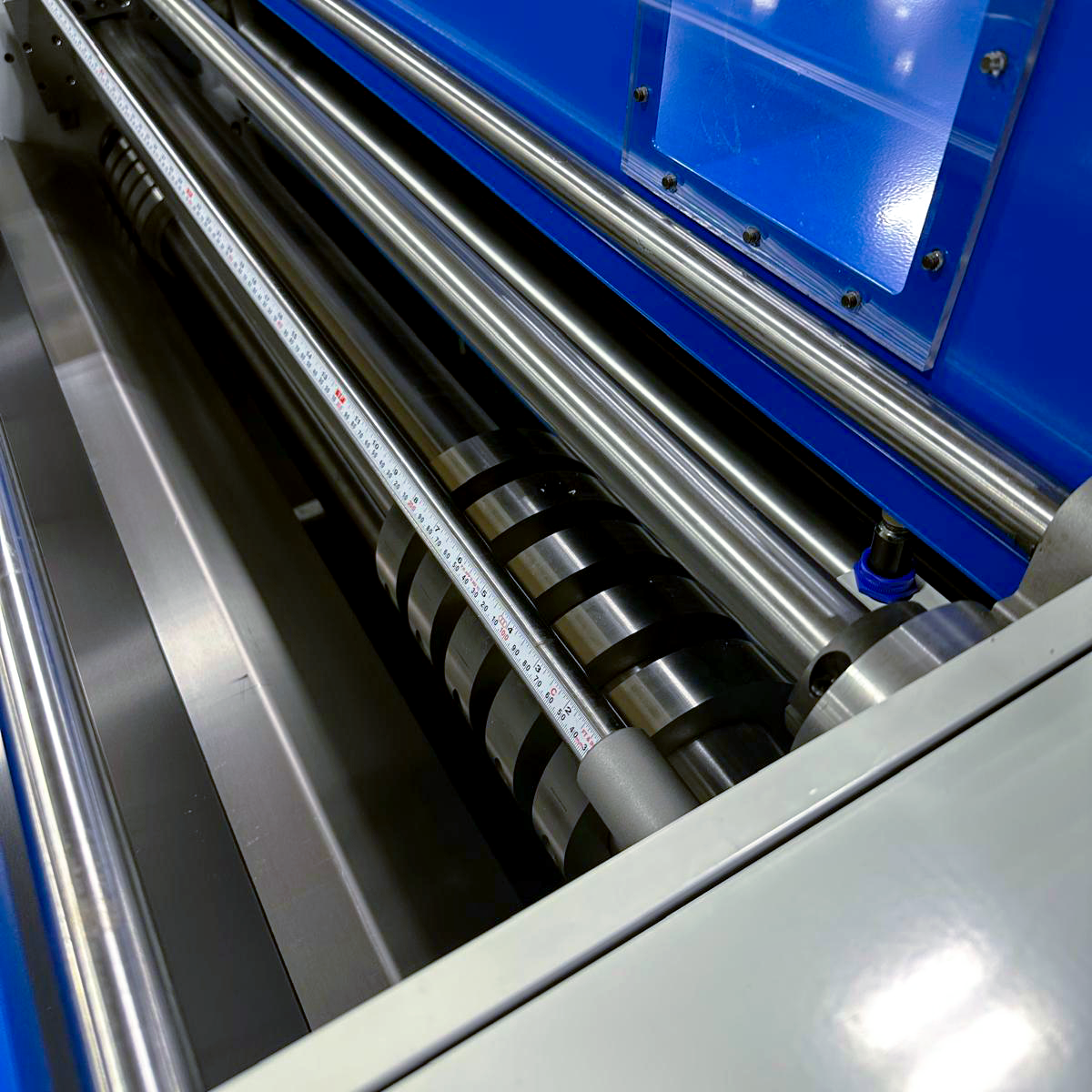

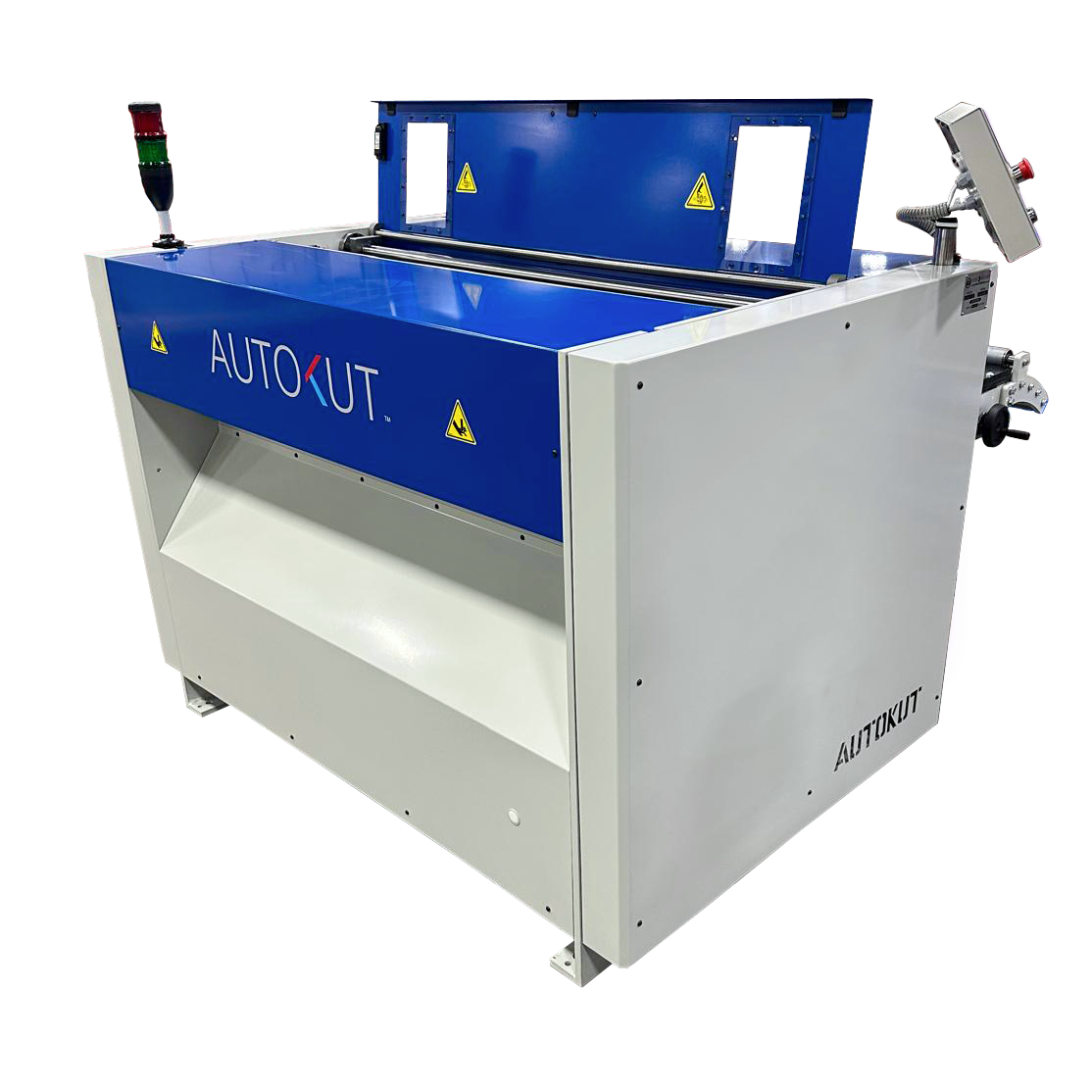

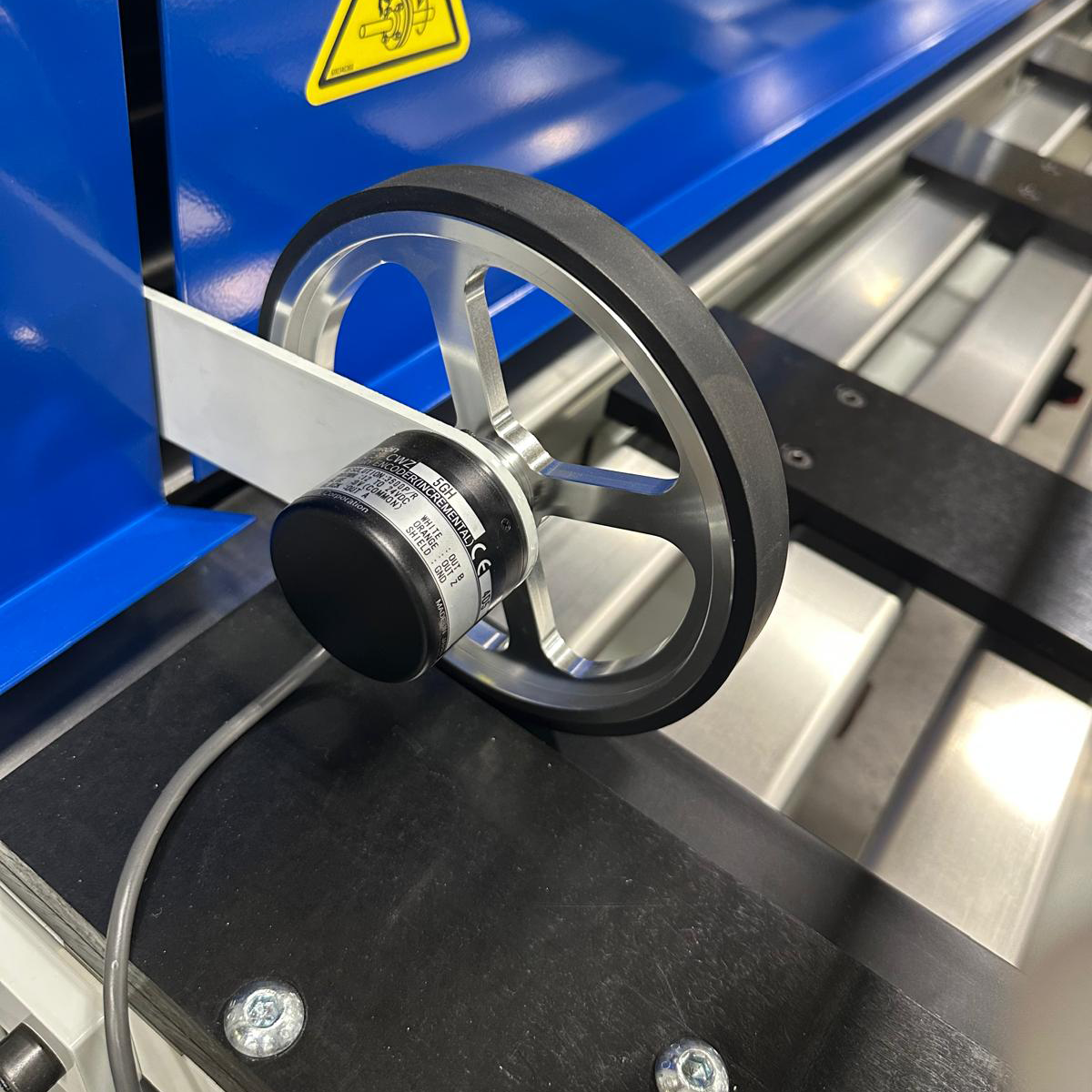

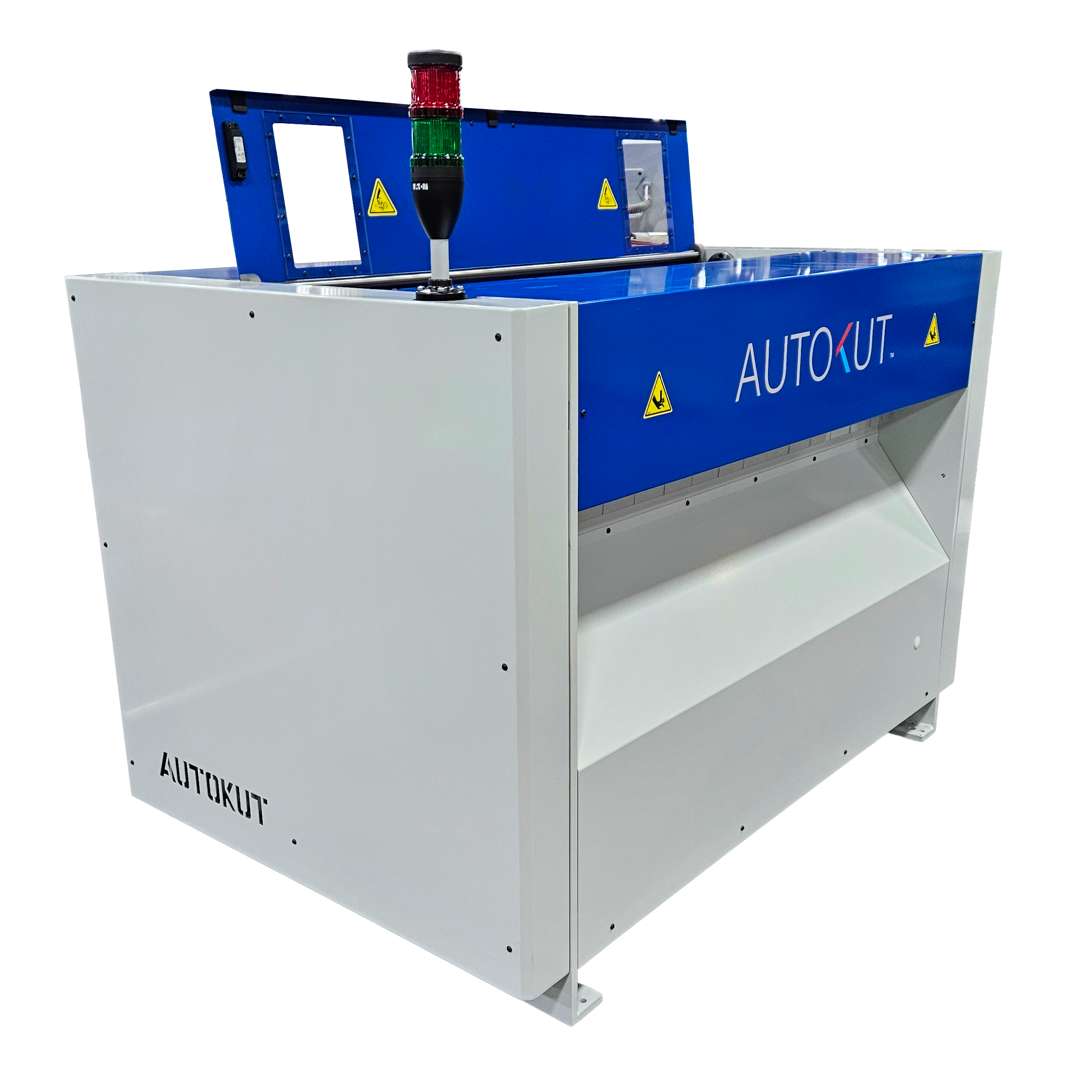

Roper Whitney’s AutoKut 100 features automatically-controlled slitting shaft adjustments, straightening rollers, and feed rollers, streamlining processing. It is designed for long-term serviceability with all mechanisms outside the machine and does not require disassembly for blade changes. The AutoKut 100 reaches a maximum speed of 85 ft per minute and can accommodate coils up to 49″ wide. It can slit up to 20 gauge mild steel and blank up to 18 gauge. It comes standard with 5 pairs of easily-repositioned slitting blades and offers an approximate 1-second shear cycle time.
Description
Additional information
| Weight | 4055 lbs |
|---|---|
| Dimensions | 72 × 66 × 46 in |
