AB1016T Autobrake- SN: 177-03-09 SOLD

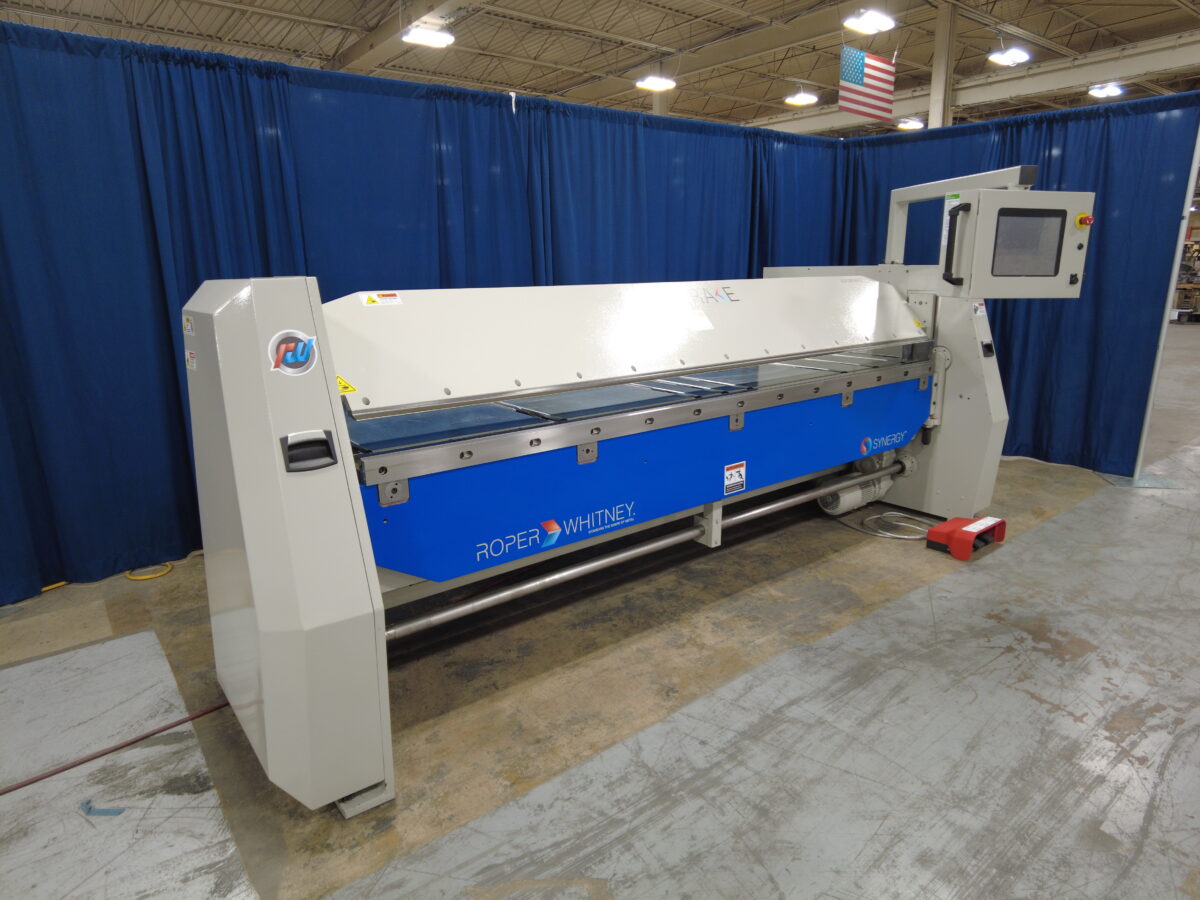

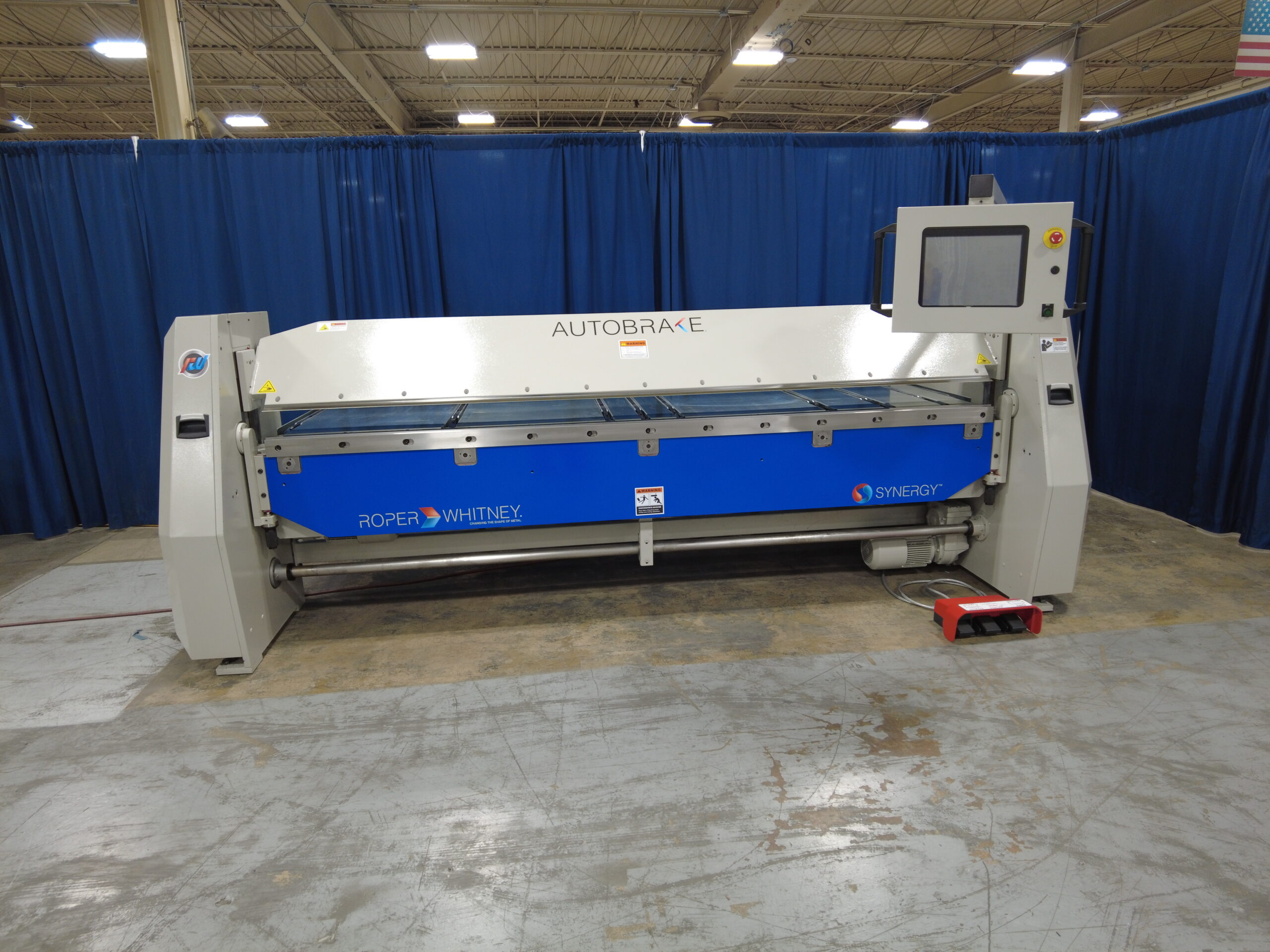

Refurbished AB1016 with Titian Control System Serial No . 177-03-09R
This machine has been sold.
Description
Refurbished AB1016 with Titian Control System Serial No . 177-03-09R
This machine has been sold.
| AUTOBRAKE AB1016 | |
| Bending Capacity (Mild Steel) | 16ga / 1,6mm |
| Bending Capacity (Stainless) | 18ga / 1,2mm up to 90, 20ga / 1,0mm past 90 |
| Bending Length | 122 in / 3100mm |
| Bending Bars | .787″ (20mm) bending bar x 122″ (3100mm) |
| .394″ (10mm) bending bar x 122″ (3100mm) | |
| .275 (7mm) bending bar x 122″ (3100mm) | |
| Crowning of the Folding Beam | 3-Point 0-0.030 Adjustment |
| Folding Beam Adjustment | 2 in / 50mm |
| Clamping Beam Opening Height | 4.5 in / 114mm |
| Clamping Beam Tooling Straight Rail | 20 Degrees |
| Back gauge Depth (Standard) | 40 in / 1000 mm |
| Working Height | 34 in / 864mm |
| Back Gauge Motor | 3/4 hp Servo / 0.6 kw Servo |
| Clamping Beam Motor | 1.5 hp / 1.1 kw |
| Bending Beam Motor | 1.5 hp / 1.1 kw |
