| Weight | 475 lbs |
|---|---|
| Maximum capacity, mild steel |
18 ga./1,25mm |
| Throat Depth |
13in./330mm |
| Distance between shaft centers |
3in. /76.2mm |
| Ratio gearing |
3-1/2 : 1 |
| Motor (230 or 460v, 3ph) |
3/4 h.p. |

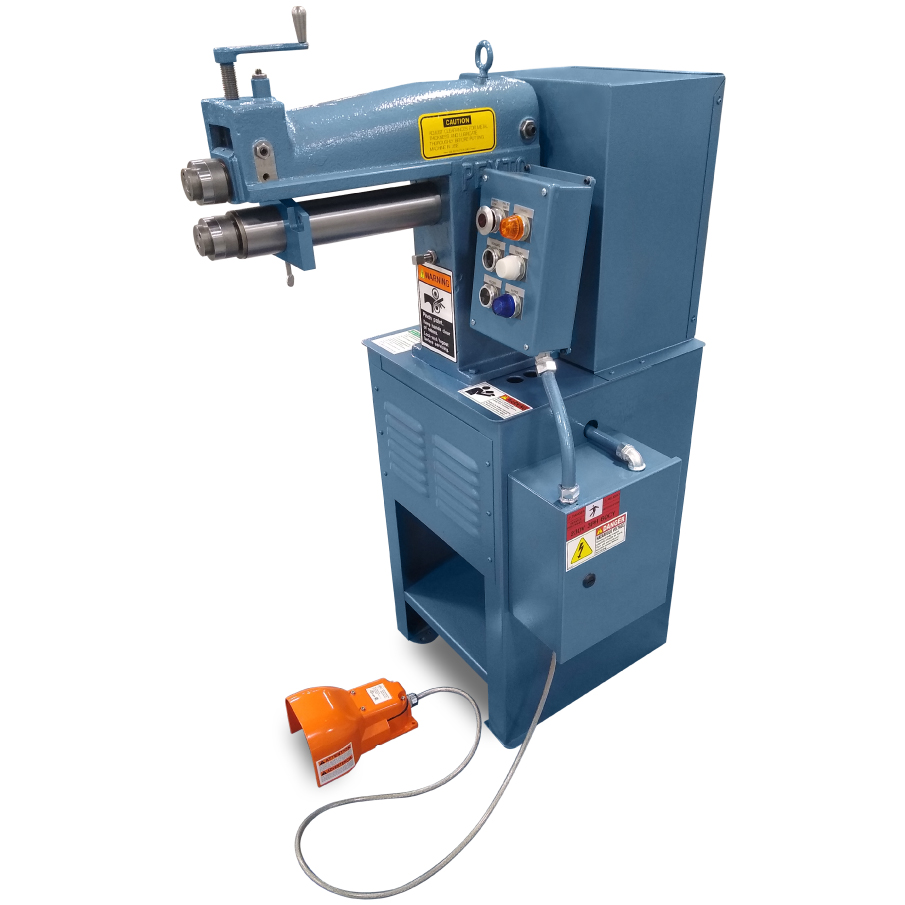

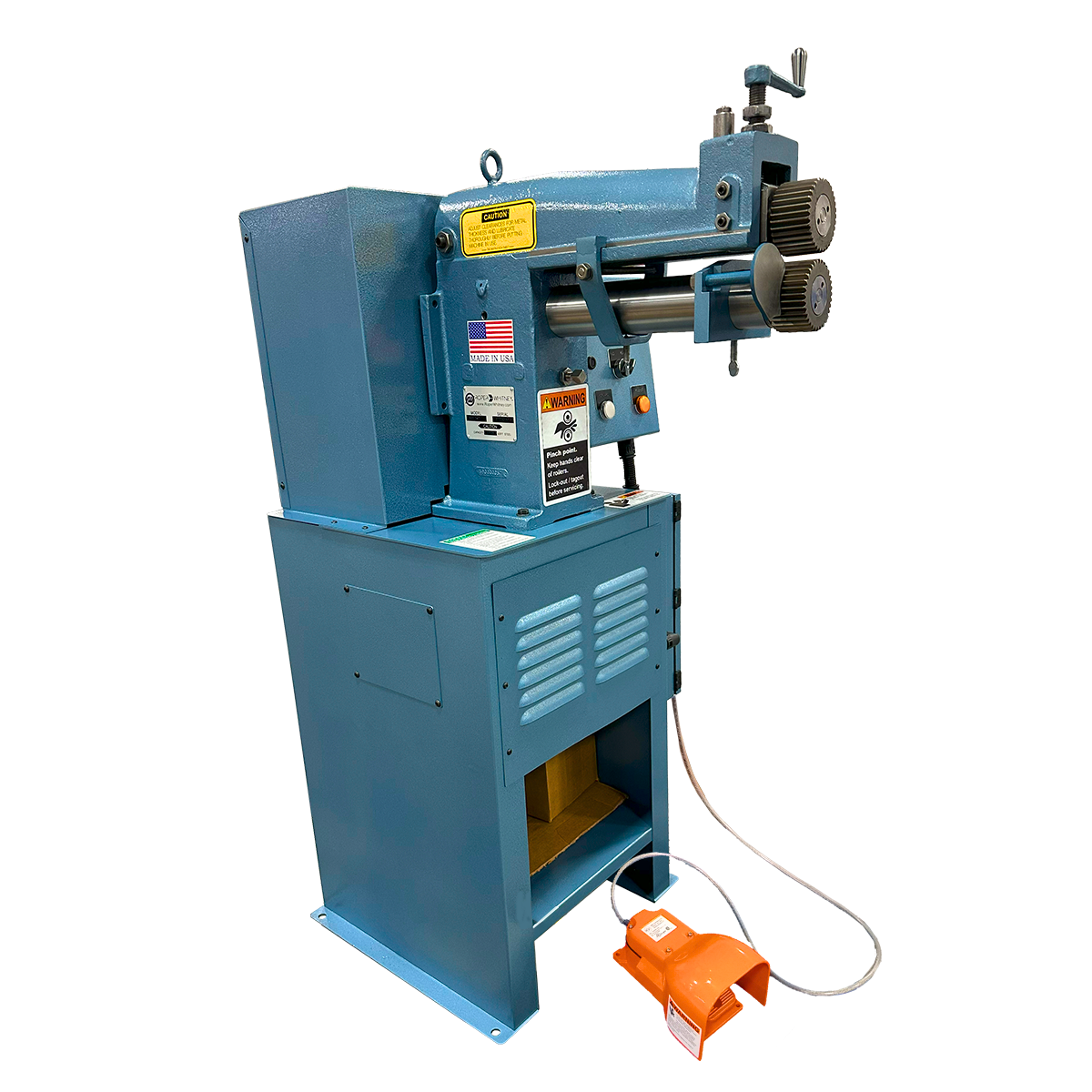

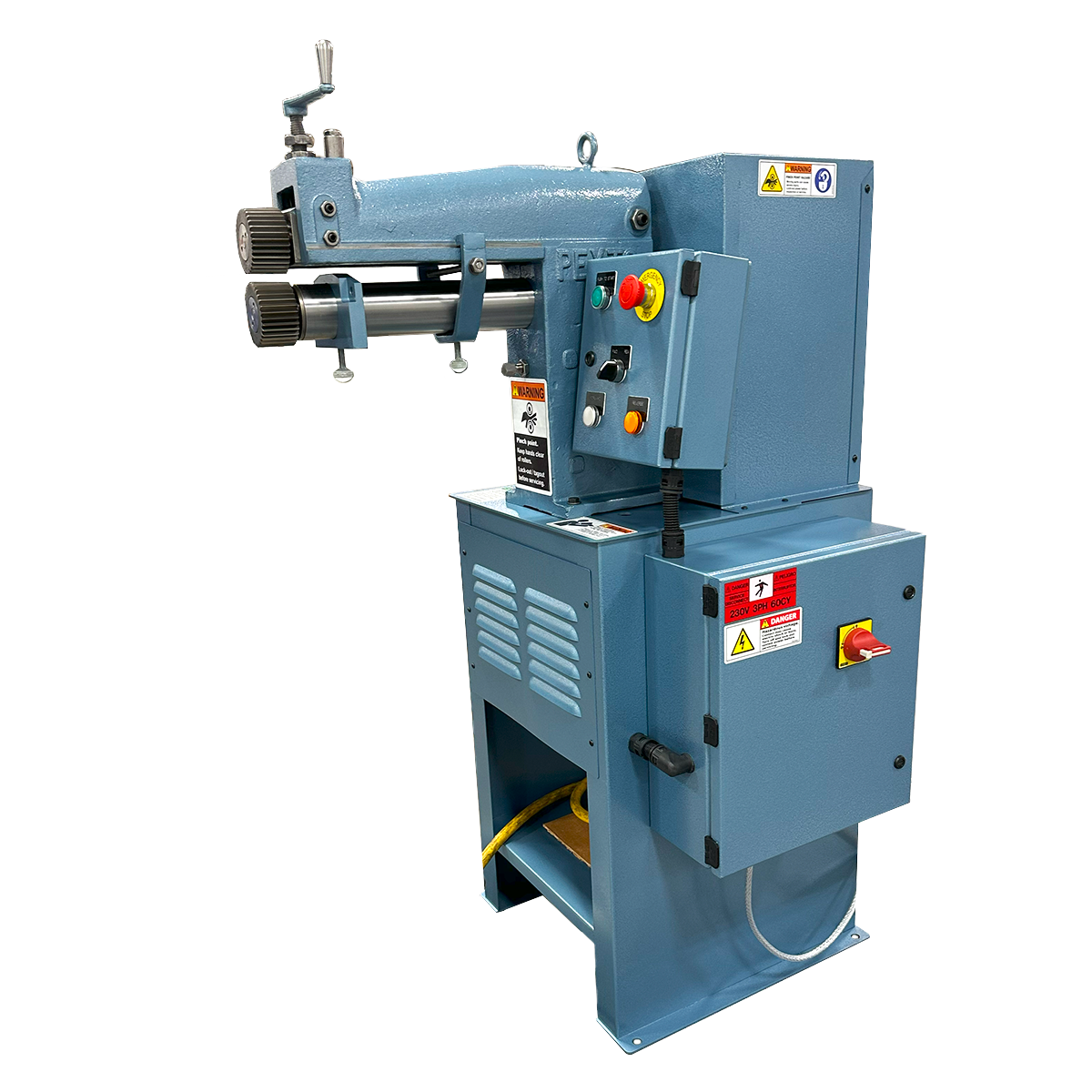

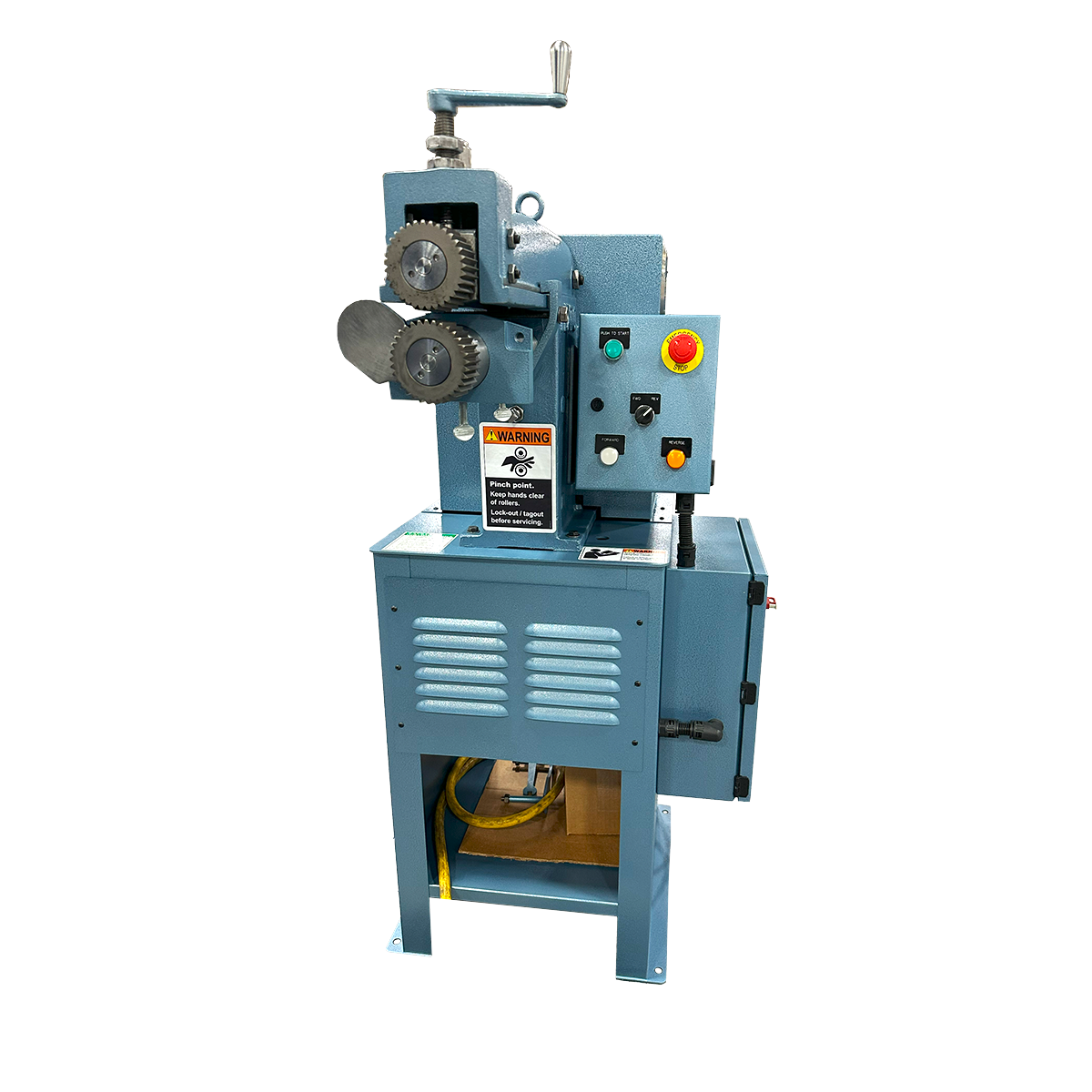

No. 3617 460V Powered Combination Rotary Machine
$9,750 + Freight

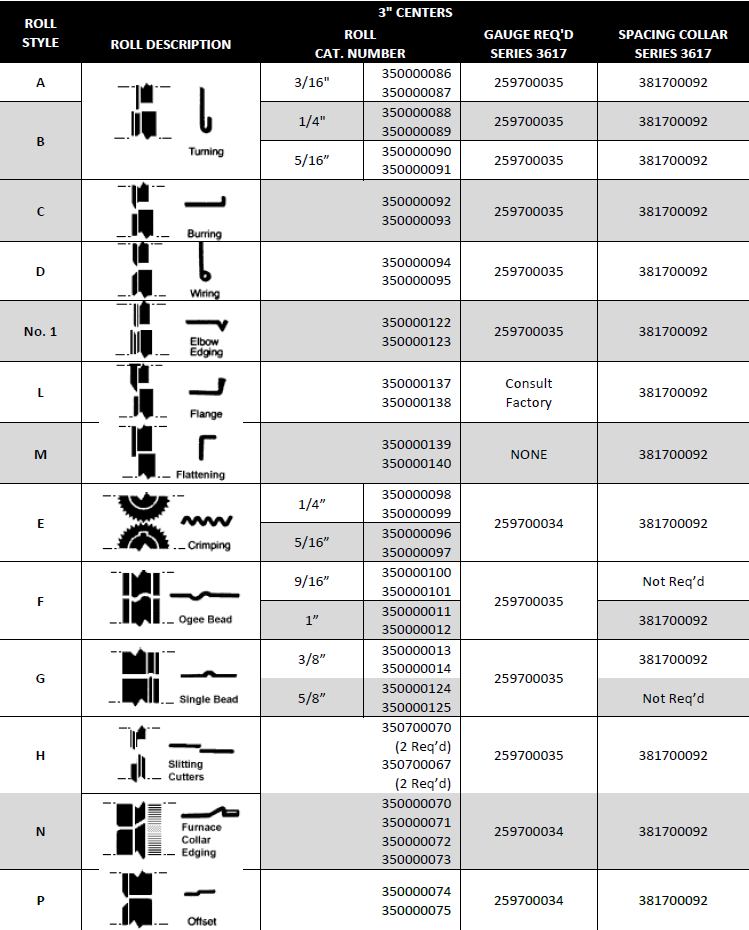

A versatile machine designed for deep throat (up to 13″) beading, crimping, and other roll operations up to 18 gauge material. Back-geared, with steel horn, bronze bushed bearing and one-piece frame. Mounted on floor stand with adjustable motor mount, “V” belt drive, and 460V, 3/4 hp. geared head motor. Unit includes gauges and spacing collars for all operations except flanging. Rolls ordered separately.
Additional information
