- spiral ducting
- painted or coated aluminum
- sheet-metal, steel studs
- stainless steel
- non ferrous materials (aluminum, copper, zinc)
- cuts without distortion or straightening of formed parts
- burr free cutting
- no finishing of the edges is required
- accurate cutting along a marked line
- single-side trimming is possible.
- working speed up to max. 5 m/min.
- clear view to scribed line or template
- long life tool
- easy, one hand, operation
- insulated and suppressed motor
- almost no maintenance necessary
- knife and jaws regrindable
3514-7R Radius Seam Metal Shear 120V
$950.00

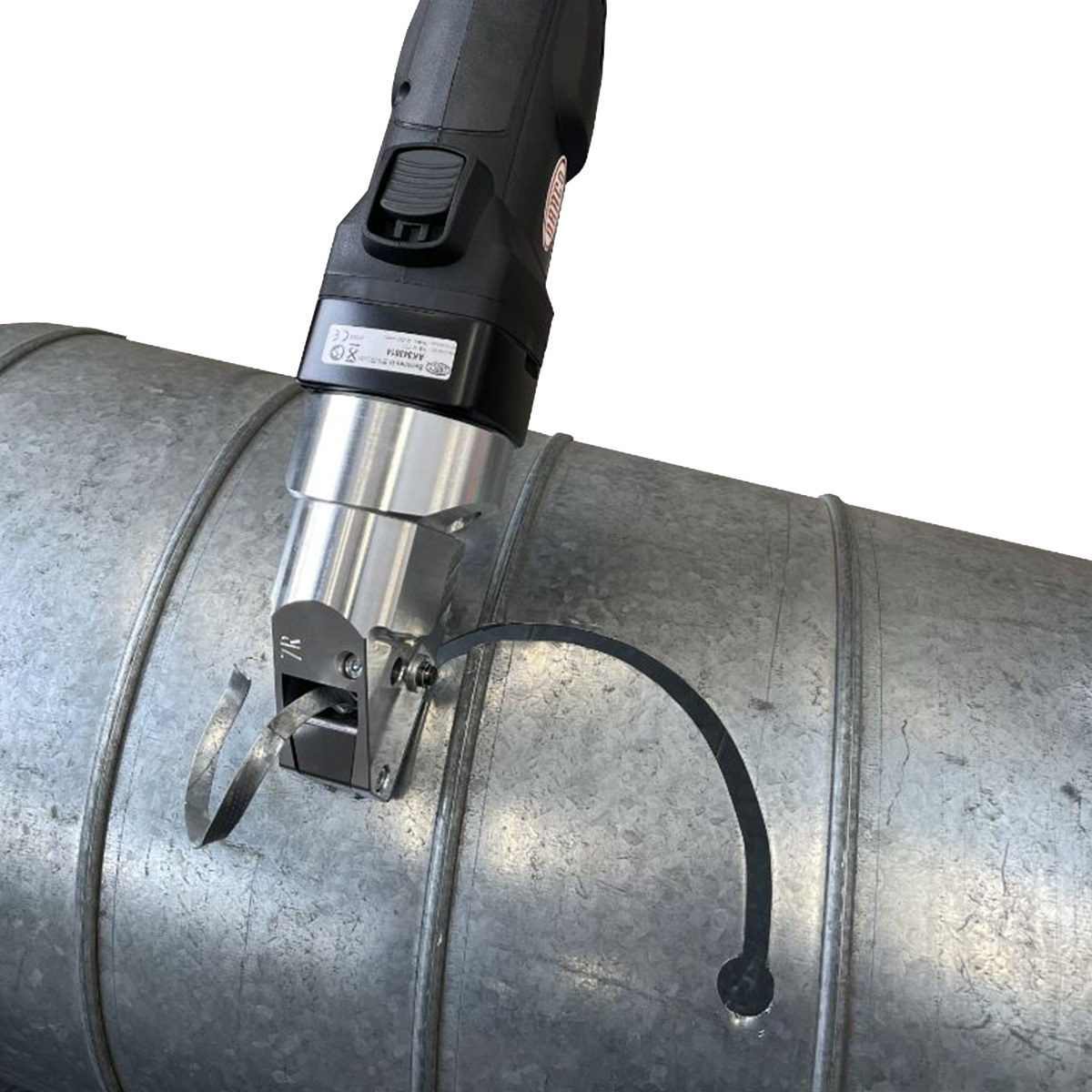

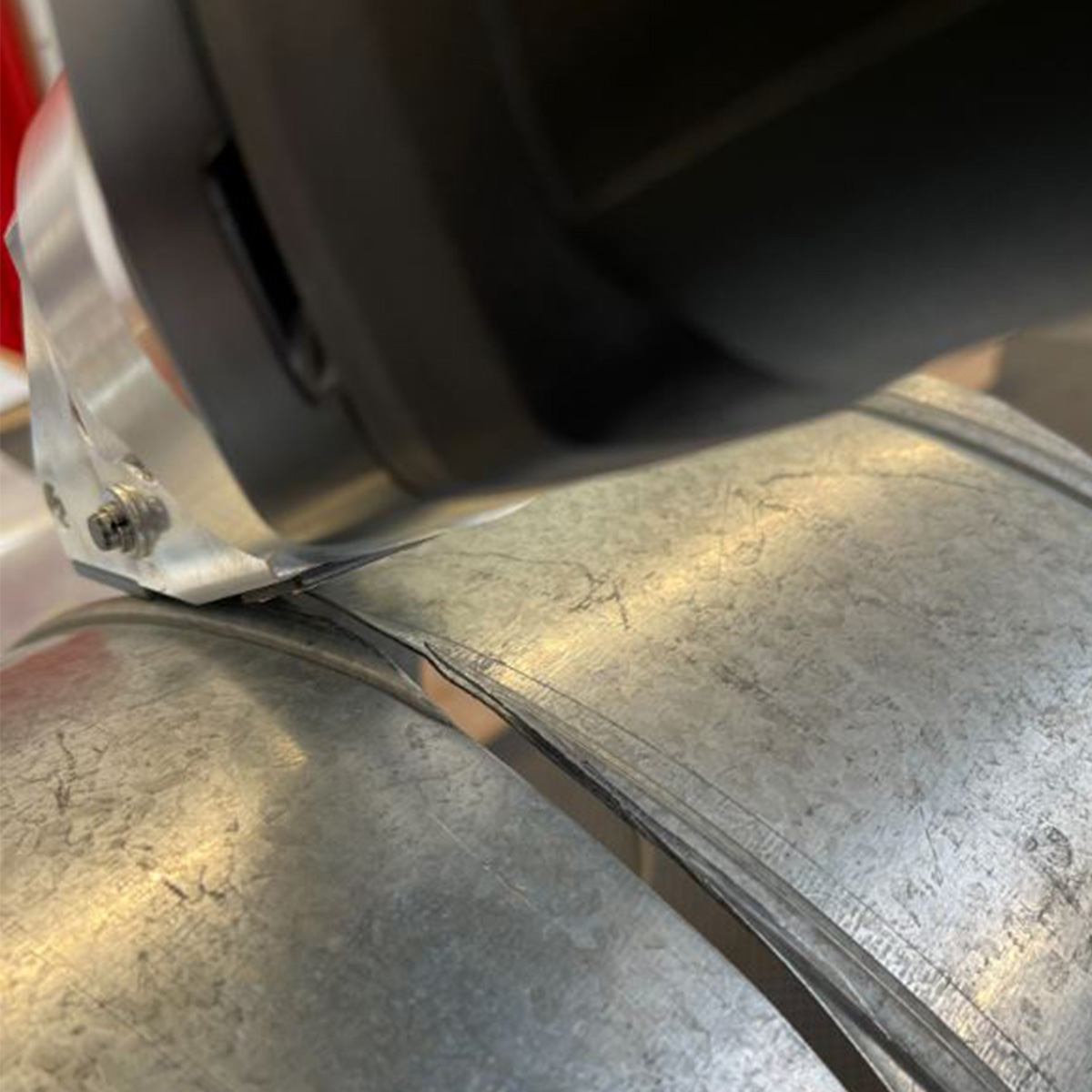

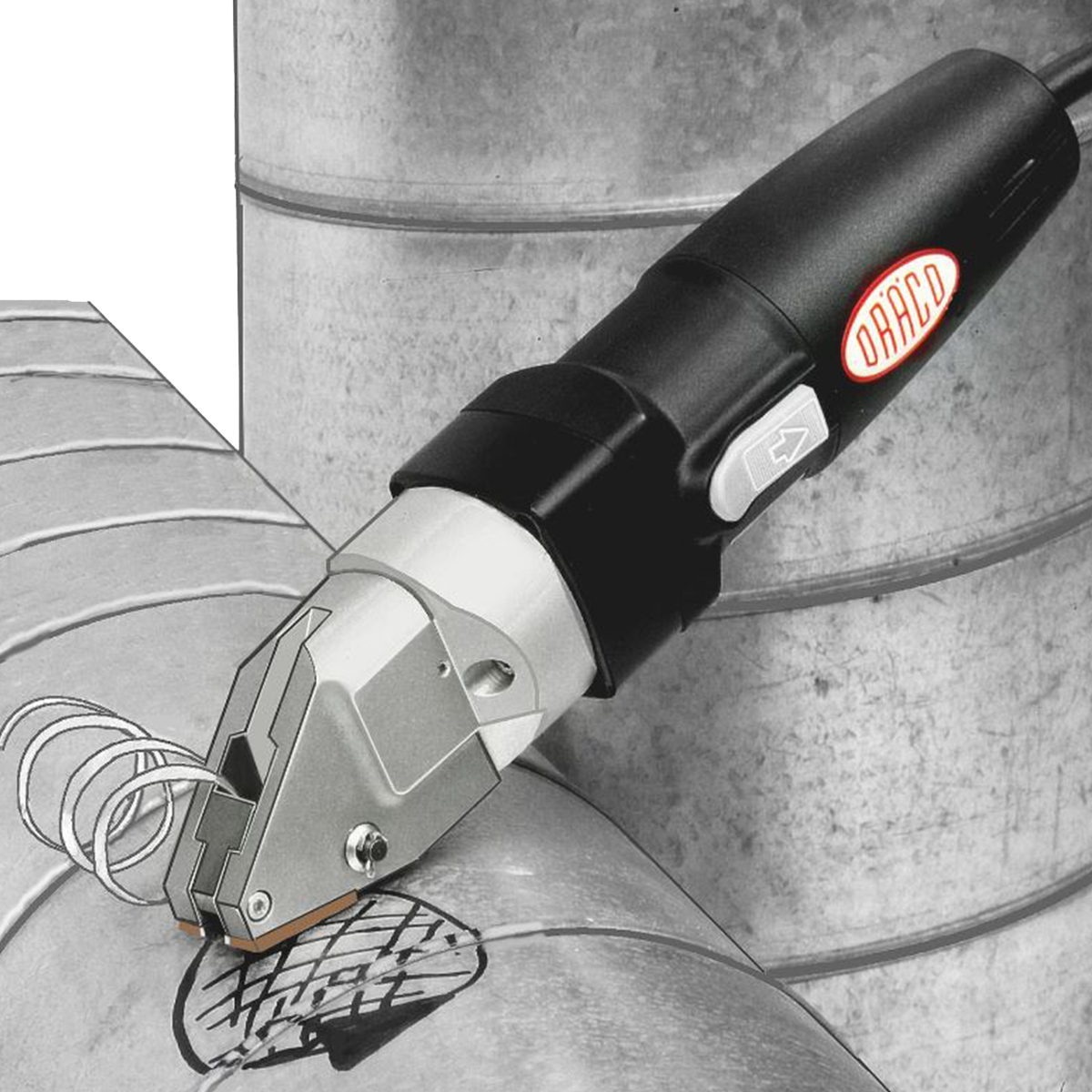

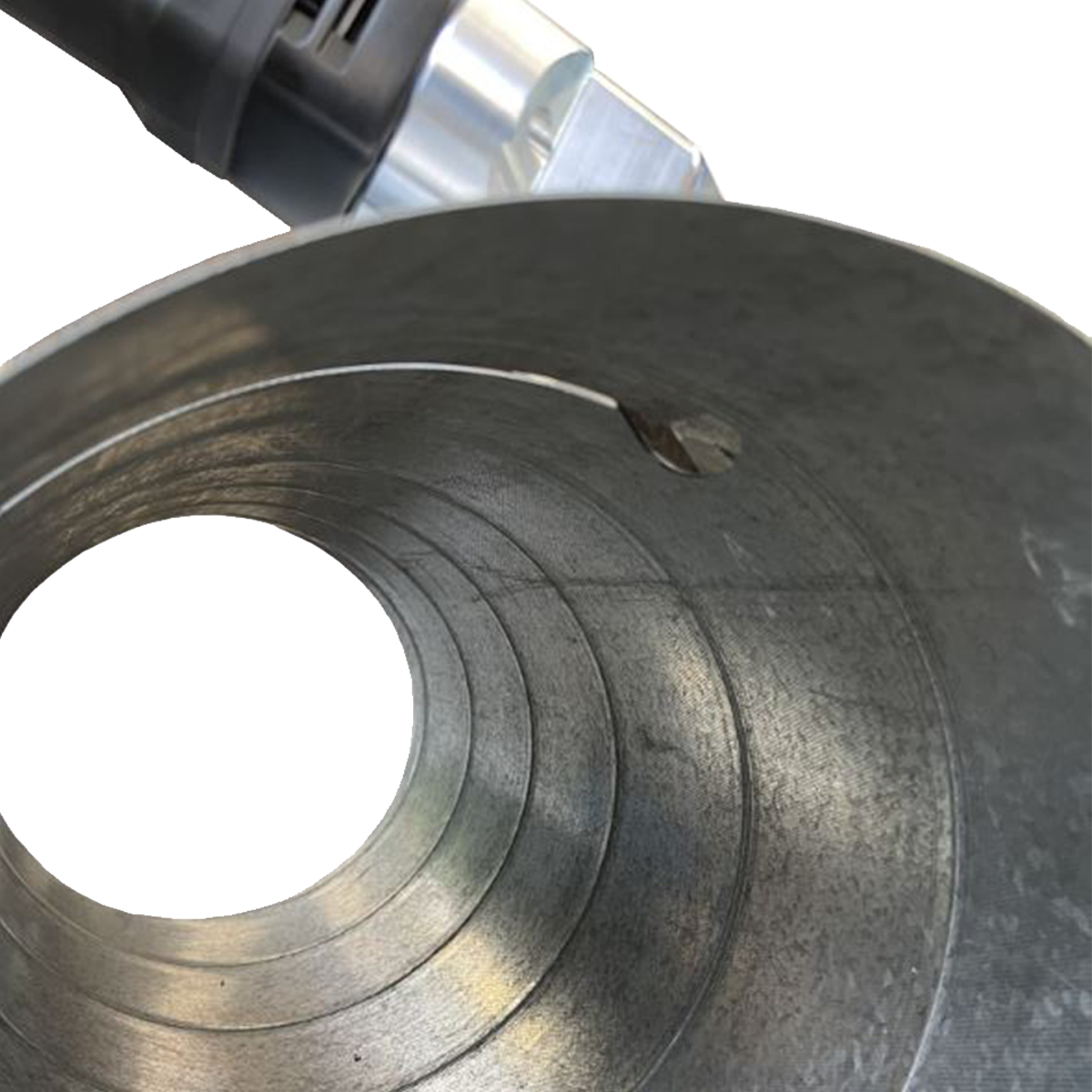

Perfect for cutting small radii through multiple seams in steel up to 14 gauge. It performs cold cutting without producing flying sparks, making it ideal for cutting recesses in spiral ducts and various sheets. It efficiently cuts straight lines and tight radii, even over seams. This tool is particularly suitable for air and climate technology, installation companies, truck workshops, and metalworking companies. It excels at creating round holes and connections in spiral tubes, splitting spiral tubes, and processing aluminum tear sheets.
Good Curve ability
Description
Ideal For Cutting:
Additional information
| Weight | 5.95 lbs |
|---|---|
| Dimensions | 16 × 3.5 × 8.5 in |
| Shear Dimensions |
13" x 2 3/4" x 2 3/4" |
| Shear Weight |
4.4 lbs (2 kg) |
| Working Speed |
23 fpm (7 m/min) |
| Minimum Radius |
1 3/4" (45 mm) |
| Max capacity Steel |
14 gauge (2 mm) |
| Max capacity Stainless |
16 gauge (1.5 mm) |
| Max capacity Aluminum |
0.120" (3mm) |
