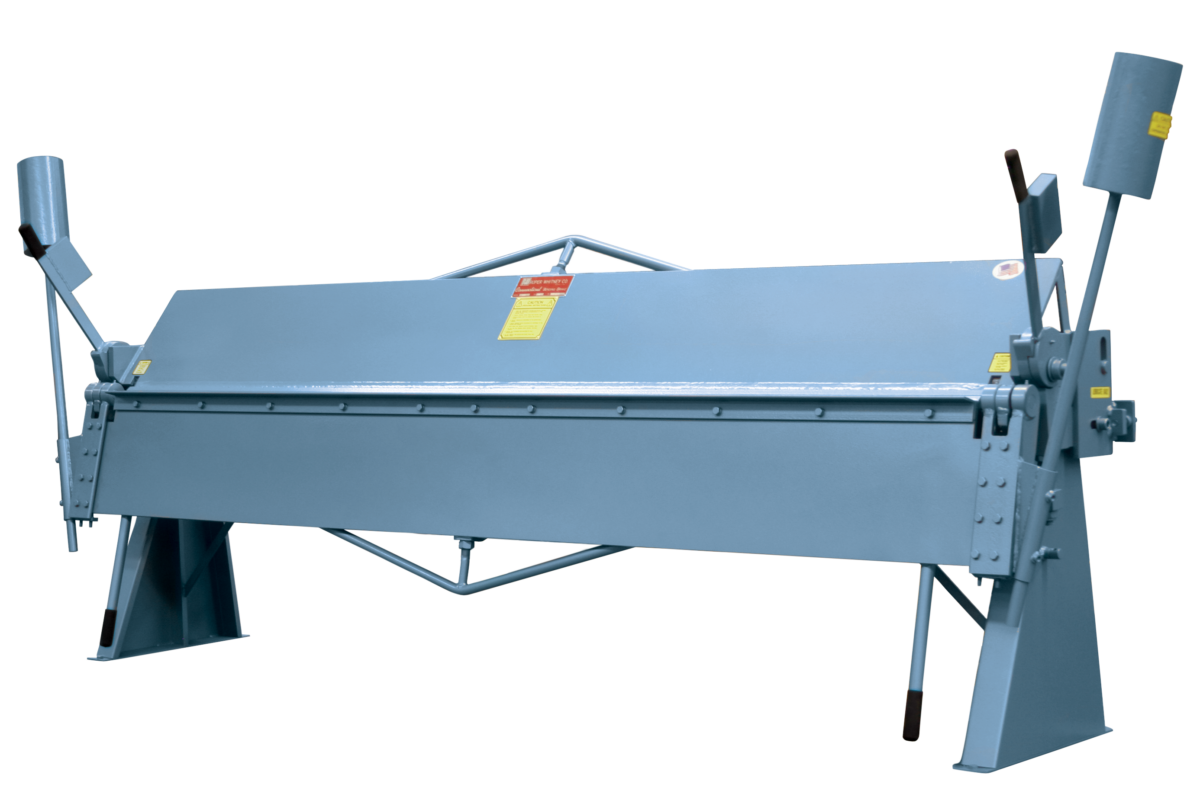

1016 Bending Brake

$8,205 + Freight


Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service. This machine has a bending capacity of 16 gauge up to 10 feet long.

SKU: 157101016 Category:
Additional information
Weight 2660 lbs
Capacity mild steel, 1-inch flange, with bending angle removed

20 ga/1.00 mm

Capacity mild steel, 1-inch flange, with bending bar and angle removed

24 ga/0.61 mm

Maximum lift of beam

2 1/4 in/57mm

Front to rear adjustment

1 3/8 in/ 35 mm
